Monitor KDS Data

  1. Ignition "OFF", connect KDS.
  2. Ignition "ON"., select "Current Data" with KDS.

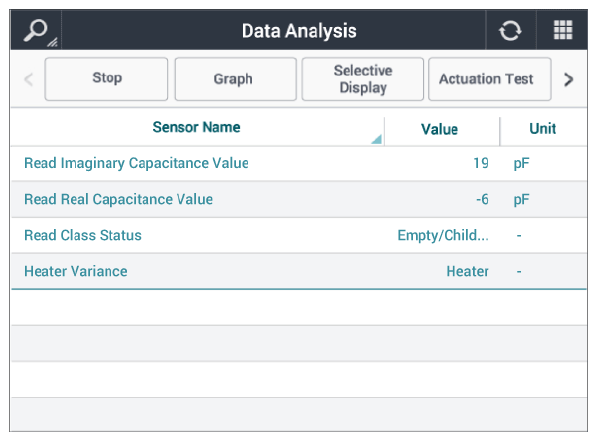

  3. Monitor the "Read Class Status" parameter on the KDS.
    G13409993Courtesy of KIA MOTORS AMERICA, INC.
  4. Has a problem been found?

    YES

    NO

    • Check module connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and then go to "Body Sensor Reset " and "VERIFICATION OF REPAIR " procedure.
