Commercial Tool

WARNING: This page is about a different variant/trim than selected.

Tool Name	Illustration	Description

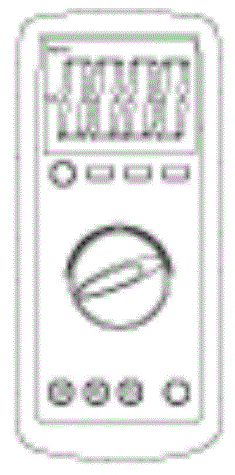

Multi tester	Courtesy of KIA MOTORS AMERICA, INC.	Measuring resistance, voltage, and resistance
Insulation resistance tester (Multi tester)	Courtesy of KIA MOTORS AMERICA, INC.	Measuring insulation resistance, voltage, and resistance
Contact pin	Courtesy of KIA MOTORS AMERICA, INC.	When measuring the insulated resistance on each PRA inverter, use a contact pin to prevent damage on the connector and for more accurate measurement.
