Vehicle S/W Management

WARNING: This page is about a different variant/trim than selected.
CAUTION: In case of replacing TCM or Clutch pack perform following procedures;
  1. Ignition switch "OFF"
  2. Connect KDS/GDS to Data Link Connector (DLC).
  3. Ignition switch "ON" & Engine "OFF"
  4. Select the "Vehicle S/W Management" about related DTC with KDS/GDS.

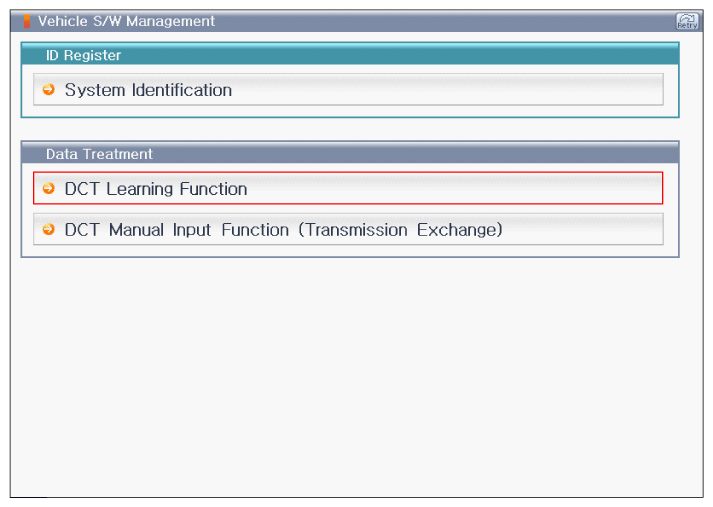

Fig 1: Screen Display - Vehicle S/W Management
G12155550Courtesy of KIA MOTORS AMERICA, INC.

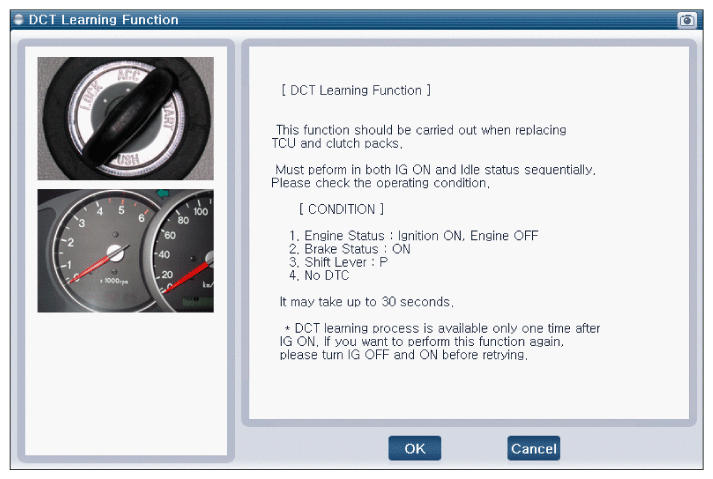

Fig 2: Screen Display - DCT Learning Function - Step 1~5 (1 Of 4)
G12155551Courtesy of KIA MOTORS AMERICA, INC.

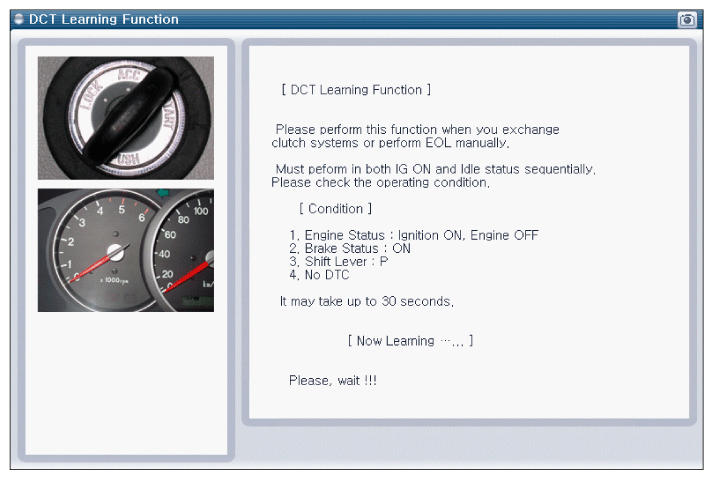

Fig 3: Screen Display - DCT Learning Function - Step 1~5 (2 Of 4)
G12155552Courtesy of KIA MOTORS AMERICA, INC.

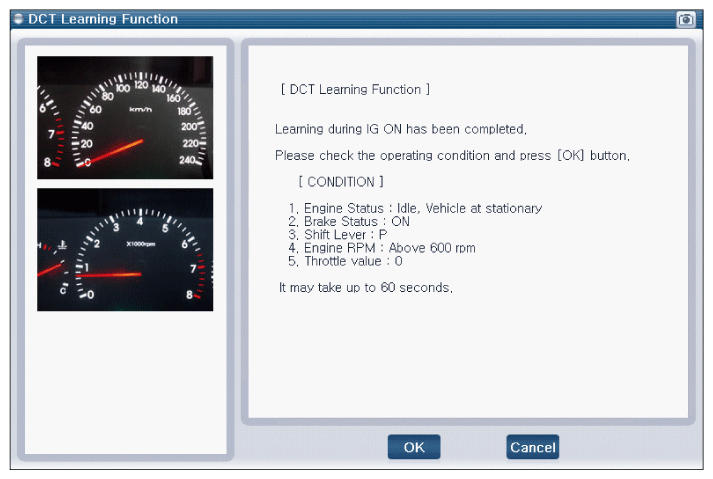

Fig 4: Screen Display - DCT Learning Function - Step 1~5 (3 Of 4)
G12155553Courtesy of KIA MOTORS AMERICA, INC.

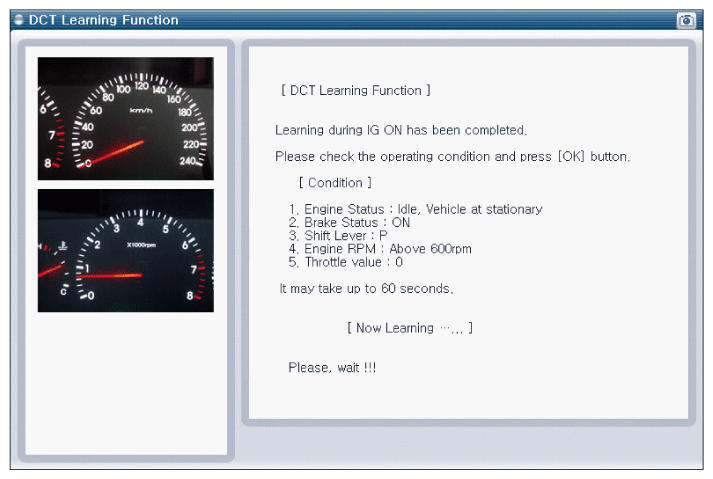

Fig 5: Screen Display - DCT Learning Function - Step 1~5 (4 Of 4)
G12155554Courtesy of KIA MOTORS AMERICA, INC.
Fig 6: Screen Display - DCT Learning Function Completed
G12155555Courtesy of KIA MOTORS AMERICA, INC.
