Ground Circuit Inspection

  1. Ignition "OFF".
  2. Disconnect SAS connector.
  3. Measure resistance between terminal "1" of the steering angle sensor harness connector and chassis ground.

    Specification: Approx. below 1 Ω

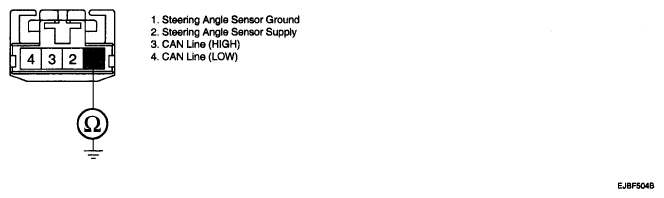

    Fig 1: Measuring Resistance Between Terminal Steering Angle Sensor Harness Connector And Chassis Ground
    G04883891Courtesy of KIA MOTORS AMERICA, INC.
  4. Is the measured resistance within specifications?

    YES

    NO

    • Check for damaged harness and poor connection between terminal "15" of the HECU harness connector and terminal "1" of the steering angle sensor harness connector. Repair as necessary and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
