Bracket, Engine Mount, Rear: Installation

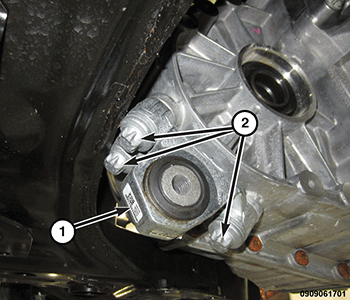

GC0171681Courtesy of CHRYSLER GROUP, LLC
  1. Install the rear engine mount bracket (1) and tighten the three bolts (2) to the proper torque specification. Refer to (TORQUE SPECIFICATIONS ).
  2. Install the rear engine mount insulator. Refer to INSTALLATION  .
  3. Remove the support and lower the vehicle.
