Chain And Sprockets, Timing: Removal

WARNING: This page is about a different car, the 2020 Chrysler 300 and 2019 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the timing chain cover. Refer to REMOVAL  .
    GC0088128Courtesy of CHRYSLER GROUP, LLC
  2. Install the vibration damper bolt finger tight. Using a suitable socket and breaker bar, rotate the crankshaft to align the timing marks with the timing chain sprockets (1, 2).
    GC0158237Courtesy of CHRYSLER GROUP, LLC

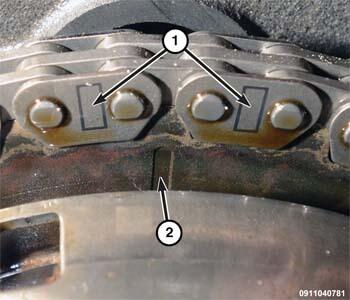

  3. Ensure that the camshaft gear (2) is aligned with the camshaft timing chain marks (1) in the twelve O'clock position.
    GC0158218Courtesy of CHRYSLER GROUP, LLC

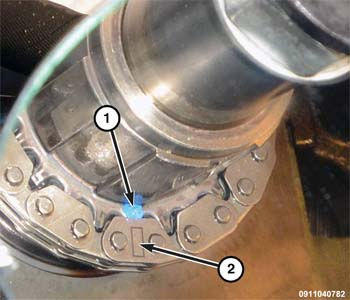

  4. The crankshaft gear mark (1) should align with the timing chain mark (2) at the six O'clock position.
    GC0088129Courtesy of CHRYSLER GROUP, LLC
  5. Retract the chain tensioner arm (1) until the hole in the arm lines up with the hole in the bracket.
    GC0158247Courtesy of CHRYSLER GROUP, LLC
  6. Install the Tensioner Pin (special tool #8514A, Pins, Tensioner) (2) into the chain tensioner holes.
  7. If the timing chain tensioner is being replaced, remove the retaining bolts (1) and remove the timing chain tensioner.
    GC0088058Courtesy of CHRYSLER GROUP, LLC
  8. Remove the four engine oil pump (1) retaining bolts (2).
    GC0158244Courtesy of CHRYSLER GROUP, LLC

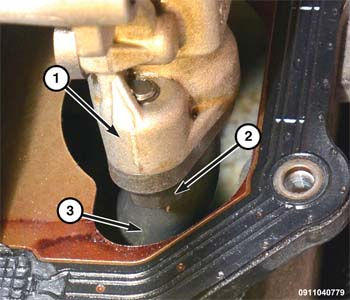

  9. Rotate the engine oil pump body (1) clockwise to gain access to the oil pump pickup tube (3) retaining bolt (2).
  10. Remove the engine oil pump pickup tube retaining bolt (2).
  11. Remove the engine oil pump pickup tube (3) from the engine oil pump body (1).
    NOTE:

    There is an O-ring on the pickup tube. Be sure not to drop the O-ring into the engine oil pan.

  12. Remove the oil pump from the engine.
    GC0158230Courtesy of CHRYSLER GROUP, LLC

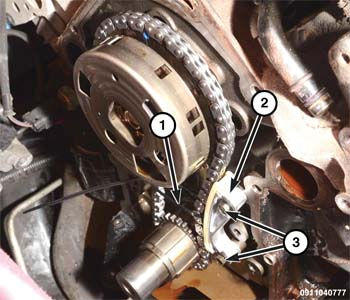

  13. If the timing chain guide (2) is being replaced, remove the retaining bolts (3) and remove the timing chain guide.
    GC0088130Courtesy of CHRYSLER GROUP, LLC
  14. Remove the camshaft phaser retaining bolt (1) and remove the timing chain with the camshaft phaser and crankshaft sprocket.
    NOTE:

    Do not rotate the crankshaft or camshaft after timing chain removal. The 5.7L engine has zero skipped tooth clearance. Catastrophic engine damage will result if the proper camshaft and crankshaft positions and not established during assembly.
