G2: Check For O2 Sensor Failure

  1. Run the engine for a period to warm the sensor and then maintain a steady speed of approximately 2500 rpm.
  2. Measure the voltage between EM024/001 and EM024/002.

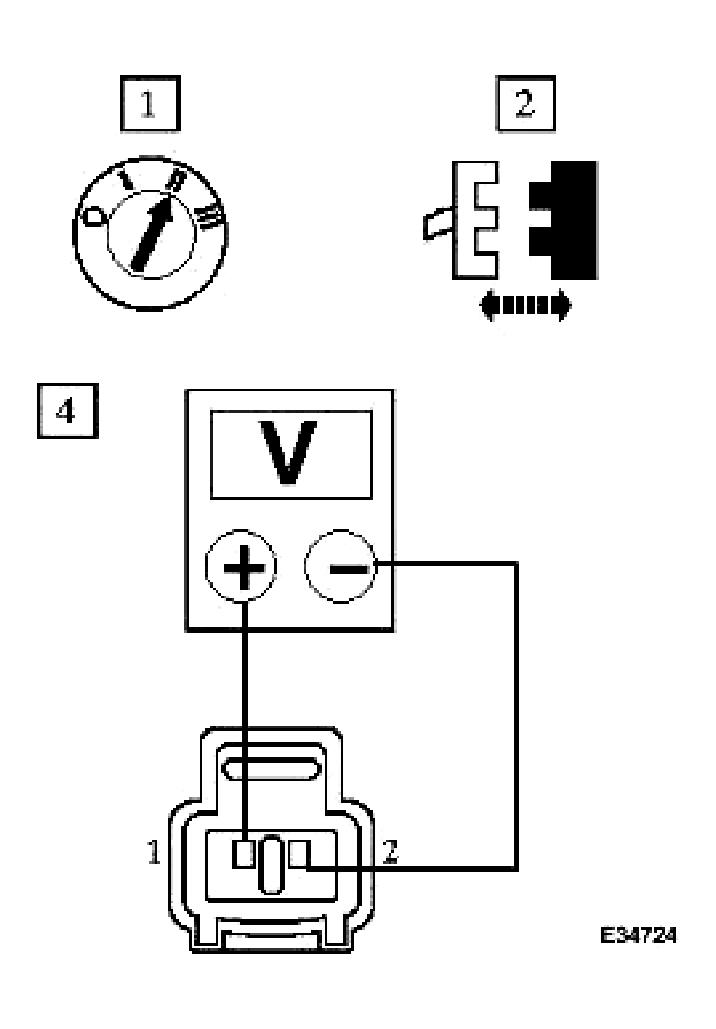

    Fig 1: Measuring Voltage Between EM024/001 And EM024/002
    G04355526Courtesy of JAGUAR CARS, INC.
    • Is the voltage between 600mV and 1.0 Volt?

    Yes  : GO to G3

    No  : Renew O2 sensor and reconnect plug(s)

    GO to G6
