G3: Check For O2 Sensor Failure

  1. With the conditions held as G2, suddenly decelerate to idle

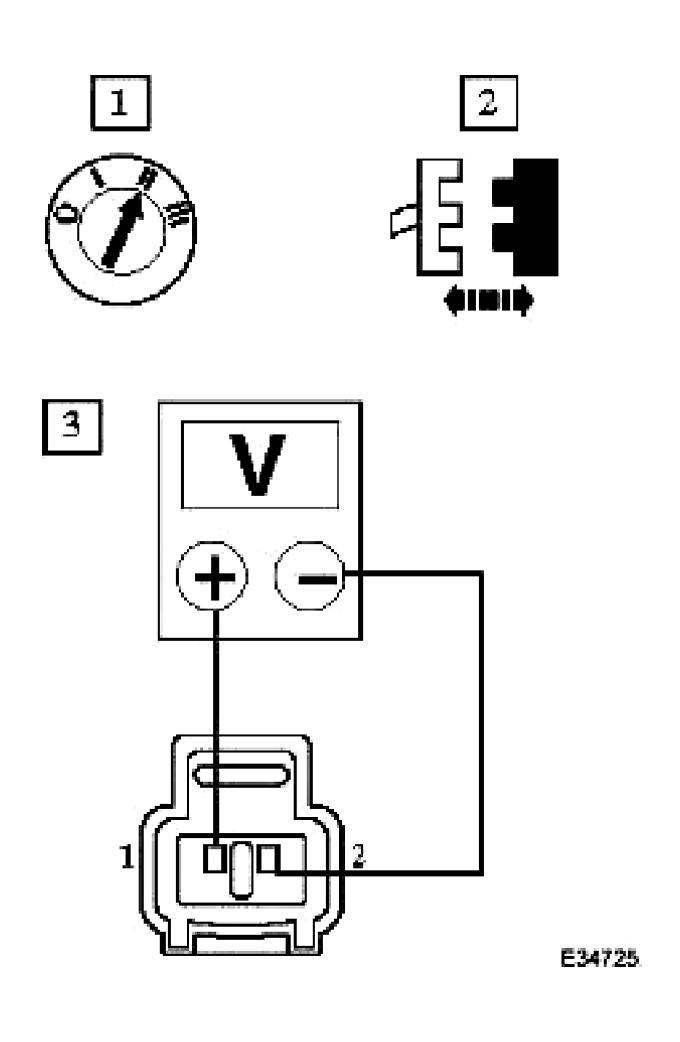

    Fig 1: Checking For O2 Sensor Failure (With Conditions Held as G2)
    G04355527Courtesy of JAGUAR CARS, INC.
    • Has the voltage dropped to 400mV or less ?

    Yes  : GO to G4

    No  : Renew O2 sensor and reconnect plug(s)

    GO to G6
