Drive Pinion: Assembly

WARNING: This page is about a different car, the 2016 Infiniti QX80. However, it is still accessible from the selected car via links, so may be relevant.

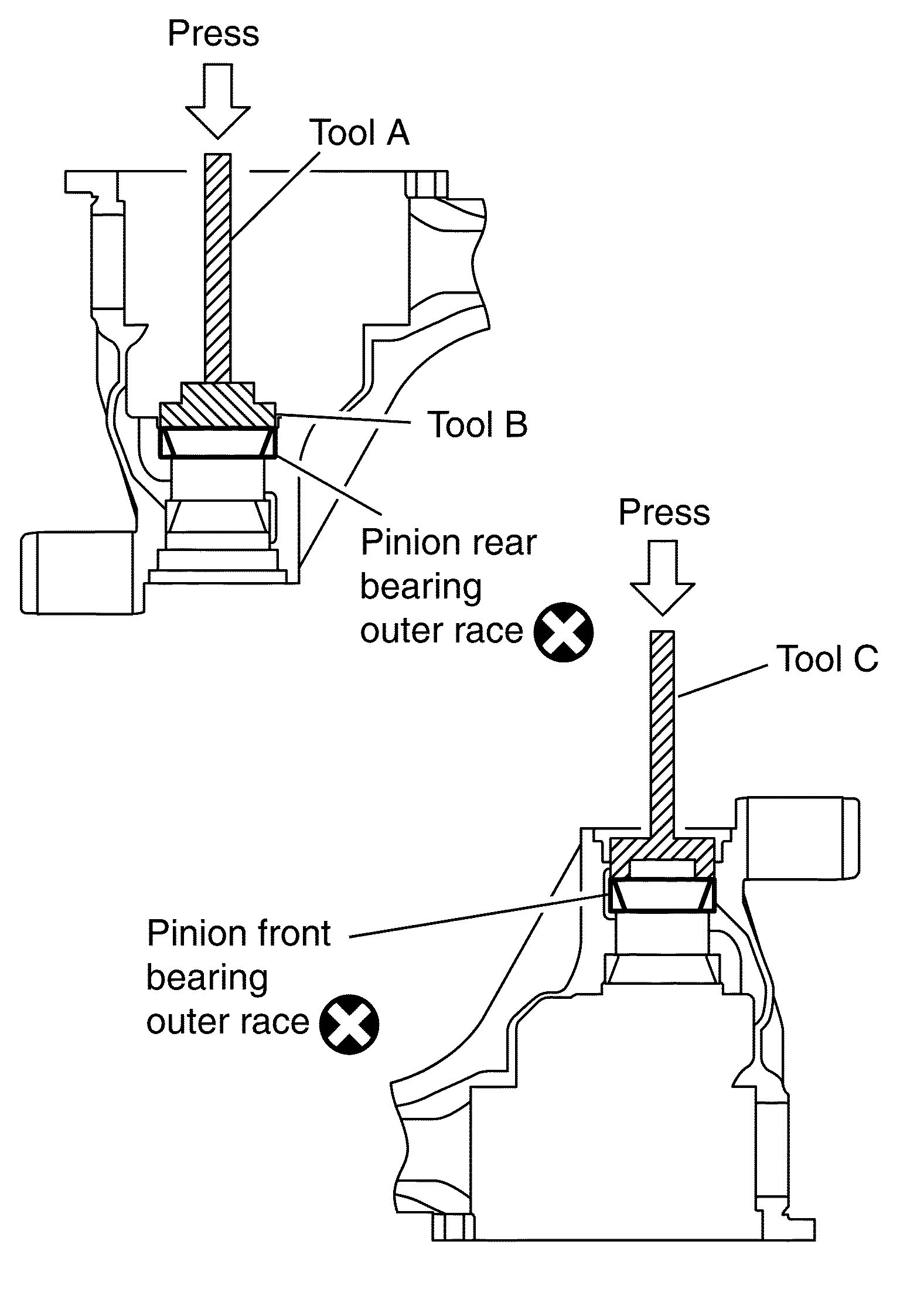

  1. Install drive pinion rear bearing outer race and drive pinion front bearing outer race using drifts (A, B, and C).
    G04149985Courtesy of NISSAN NORTH AMERICA, INC.
    A: Drift bar [SST: ST30611000 (J-25742-1)]
    B: Drift [SST: ST30313000 (J-25742-3)]
    C: Drift [SST: KV38100200 (J-26233)]
    CAUTION:
    • First tap the drive pinion bearing outer race until it becomes flush with the gear carrier.
    • Never reuse drive pinion front and rear bearing outer race.
  2. Select pinion height adjusting washer. Refer to ADJUSTMENT .
  3. Install selected drive pinion height adjusting washer (2) to drive pinion. Press pinion rear bearing inner race (1) to it, using drift (A) [SST: ST30901000 (J-26010-01)].
    G04076270Courtesy of NISSAN NORTH AMERICA, INC.
    CAUTION:
    • Be careful of the direction of pinion height adjusting washer. (Assemble as shown in the figure.)
    • Never reuse pinion rear bearing inner race.

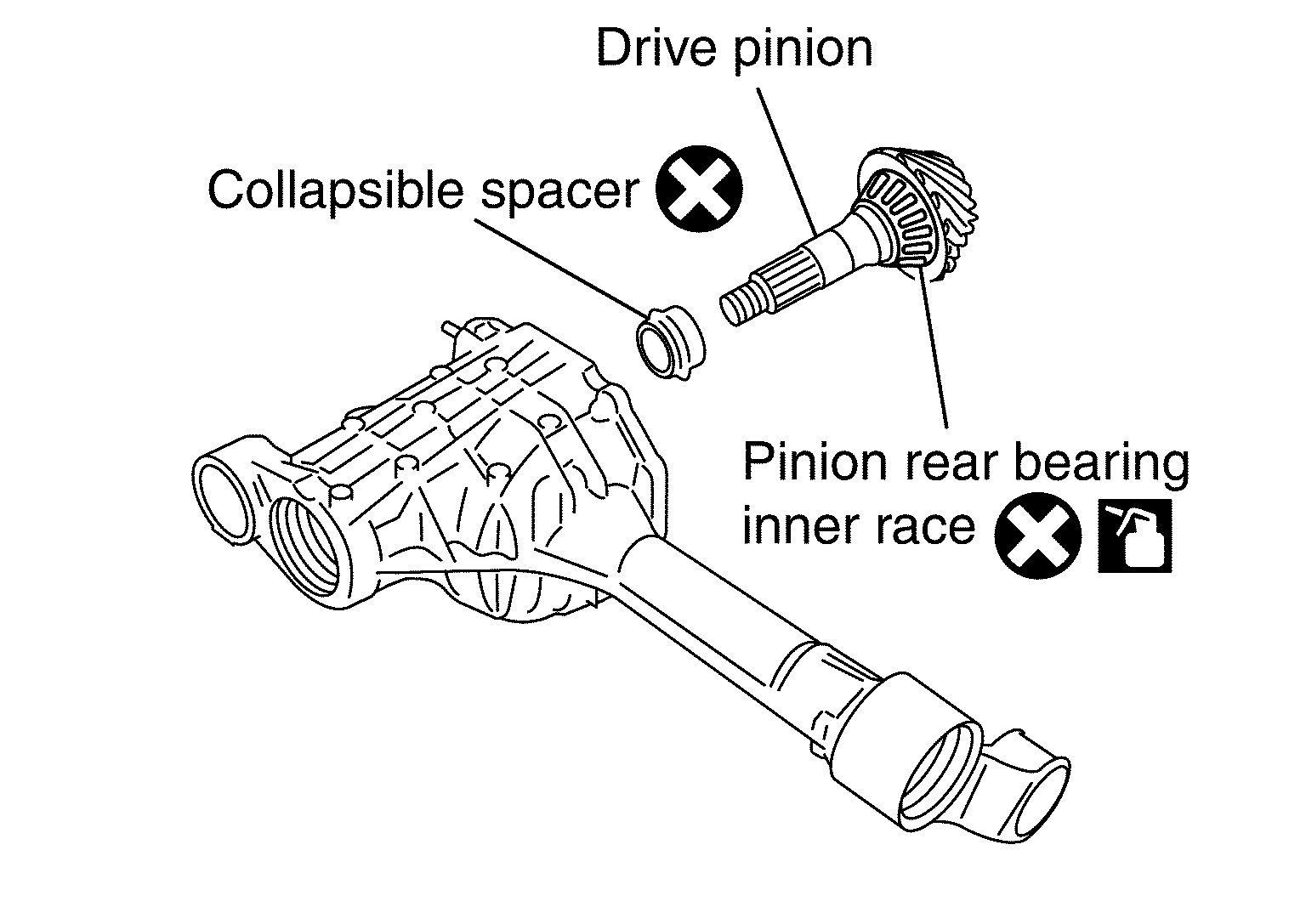

  4. Assemble collapsible spacer.
    G04149987Courtesy of NISSAN NORTH AMERICA, INC.
    CAUTION:

    Never reuse collapsible spacer.

  5. Assemble drive pinion into gear carrier.
    CAUTION:

    Apply gear oil to pinion rear bearing.

  6. Assemble pinion front bearing inner race to drive pinion assembly.
    CAUTION:
    • Never reuse pinion front bearing inner race.
    • Apply gear oil to pinion front bearing.

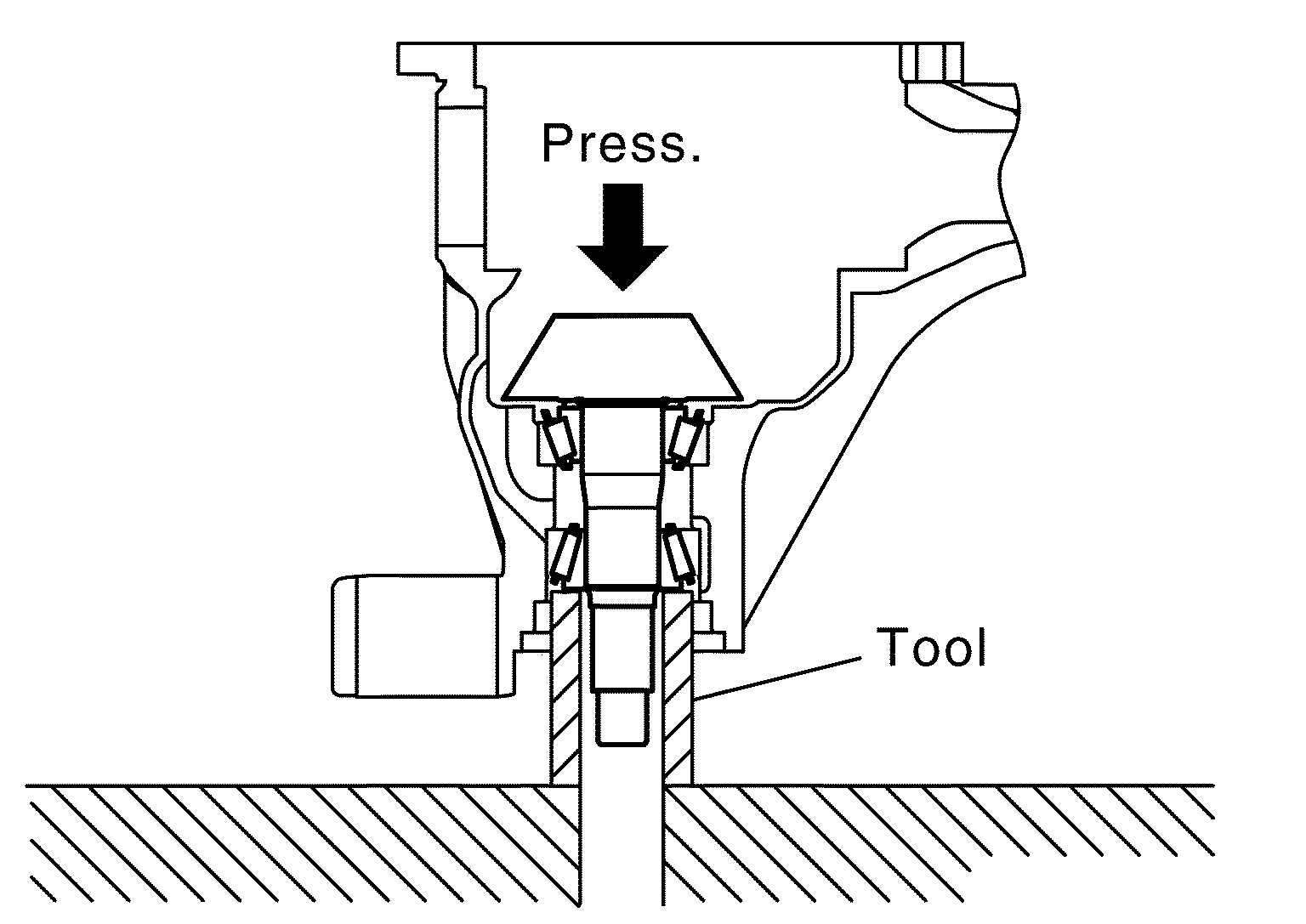

  7. Using drift [SST: ST33200000 (J-26082)], press the pinion front bearing inner race to drive pinion as far as drive pinion nut can be tightened.
    G04149989Courtesy of NISSAN NORTH AMERICA, INC.
  8. Install front oil seal as shown in figure with the drifts (A and B).
    G04149990Courtesy of NISSAN NORTH AMERICA, INC.
    A: Drift [SST: ST30720000 (J-25405)]
    B: Drift [SST: ST27863000 (-)]
    CAUTION:
    • Never reuse oil seal.
    • When installing, never incline oil seal.
    • Apply multi-purpose grease onto oil seal lips, and gear oil onto the circumference of oil seal.
  9. Install companion flange.
    NOTE:

    When reusing drive pinion, align the matching mark (B) of drive pinion with the matching mark (A) of companion flange, and then install companion flange (1).

    G04076251Courtesy of NISSAN NORTH AMERICA, INC.
  10. Temporarily tighten drive pinion lock nut to drive pinion, using flange wrench (A).
    G04756698Courtesy of NISSAN NORTH AMERICA, INC.
    A: Flange wrench (commercial service tool)
    B: Preload gauge [SST: ST3127S000 (J-25765-A)]
    CAUTION:
    • Apply anti-corrosion oil to the thread and seat of the drive pinion lock nut
    • Never reuse drive pinion lock nut.
  11. Tighten to drive pinion lock nut using flange wrench (commercial service tool), while adjusting pinion bearing preload torque using preload gauge [SST: ST3127S000 (J-25765-A)].
    Pinion bearing preload : Refer to PRELOAD TORQUE .
    CAUTION:
    • Adjust to the lower limit of the drive pinion lock nut tightening torque first.
    • After adjustment, rotate drive pinion back and forth 2 to 3 times to check for unusual noise, rotation malfunction, and other malfunctions.
  12. Install differential case assembly. Refer to ASSEMBLY .
    CAUTION:

    Never install carrier cover yet.

  13. Check and adjust drive gear runout, tooth contact, drive gear to drive pinion backlash. Refer to ADJUSTMENT .
  14. Install side shaft. Refer to ASSEMBLY .
  15. Check and adjust companion flange runout. Refer to ADJUSTMENT .
  16. Check total preload torque. Refer to ADJUSTMENT .
  17. Install carrier cover. Refer to ASSEMBLY .
