Side Shaft: Assembly

WARNING: This page is about a different car, the 2016 Infiniti QX80. However, it is still accessible from the selected car via links, so may be relevant.
  1. Press differential side shaft bearing to differential side shaft.
    G04150006Courtesy of NISSAN NORTH AMERICA, INC.
    CAUTION:

    Never reuse differential side shaft bearing.

  2. Install snap ring (differential side shaft side).
  3. Install differential side shaft assembly into gear carrier.
  4. Install snap ring (hole side).
  5. Install side oil seal (right side) until it becomes flush with the gear carrier, with the drifts (A and B).

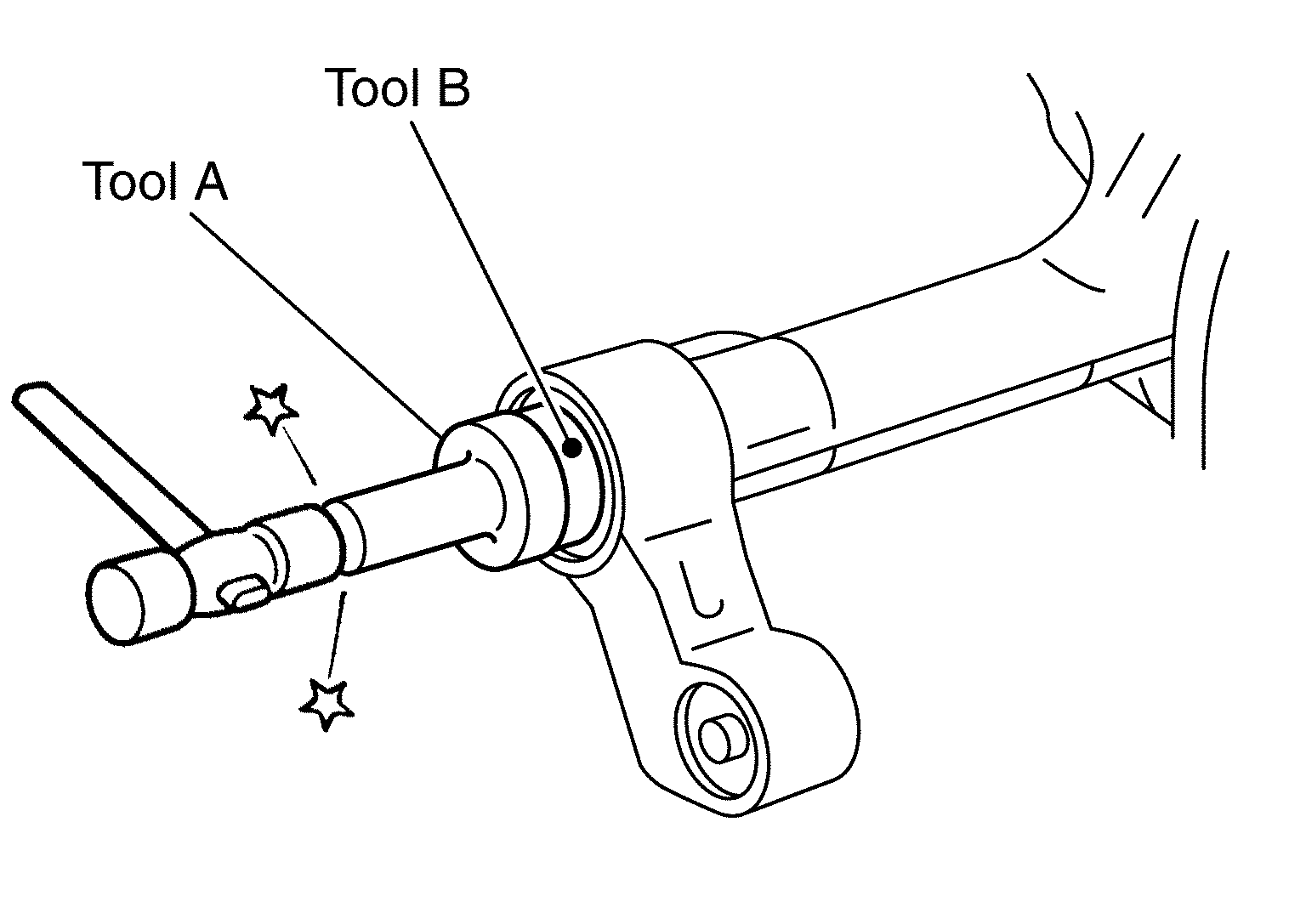

    G04150007Courtesy of NISSAN NORTH AMERICA, INC.
    A: Drift [SST: ST30720000 (J-25405)]
    B: Drift [SST: ST27863000 (-)]
    CAUTION:
    • Never reuse side oil seal.
    • When installing, never incline oil seal.
    • Apply multi-purpose grease onto oil seal lips and gear oil onto the circumference of oil seal.
