Reading ABS/TCS Diagnostic Trouble Codes
- Follow steps in RETRIEVING ABS/TCS DIAGNOSTIC TROUBLE CODES . Determine DTC by counting number of times SLIP indicator light flashes. Up to 3 codes can be stored at a time, with the most recent code displayed first.

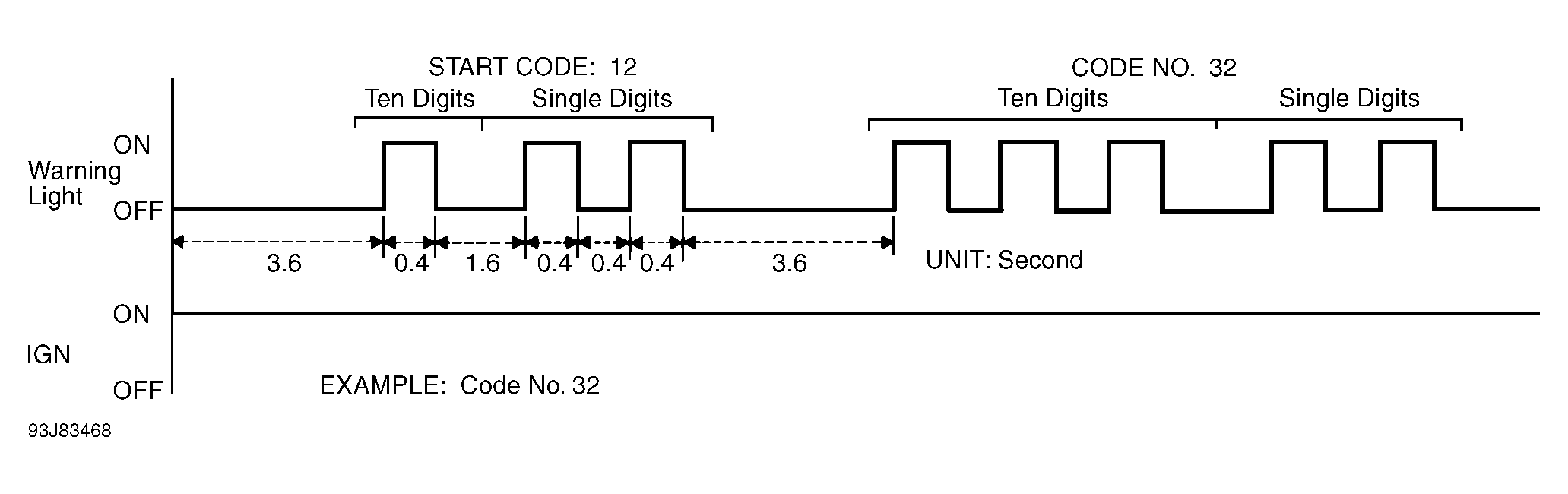

- SLIP indicator light will first flash DTC 12, which is the start code. DTC 12 will be displayed as one long flash then two short flashes. See Fig 1 . After all other DTCs are displayed, DTC 12 will again be displayed and other DTCs stored in memory will be repeated.
ABS/TCS DIAGNOSTIC TROUBLE CODE IDENTIFICATION
| ABS/TCS DTC | Malfunction | Diagnostic Procedure No. |
|---|---|---|
| 12 | No Malfunctions Detected | 15 |
| 21 | Front Right Sensor Circuit Open | 7 |
| 22 | Front Right Sensor Circuit Short | 7 |
| 25 | Front Left Sensor Circuit Open | 7 |
| 26 | Front Left Sensor Circuit Short | 7 |
| 31 | Right Rear Sensor Circuit Open | 7 |
| 32 | Right Rear Sensor Circuit Short | 7 |
| 35 | Left Rear Sensor Circuit Open | 7 |
| 36 | Left Rear Sensor Circuit Short | 7 |
| 41 | Actuator Front Right Outlet Solenoid | 8 |
| 42 | Actuator Front Right Inlet Solenoid | 8 |
| 45 | Actuator Front Left Outlet Solenoid | 8 |
| 46 | Actuator Front Left Inlet Solenoid | 8 |
| 55 | Actuator Rear Outlet Solenoid | 8 |
| 56 | Actuator Rear Inlet Solenoid | 8 |
| 57 | Power Supply (Low Voltage) | 11 |
| 58 | TAC Module Communication | 2 |
| 61 | Actuator Motor Or Motor Relay | 10 |
| 63 | Solenoid Valve Relay | 9 |
| 71 | ABS/TCS Control Unit | 12 |
| 75 | LAN Communication System Failure | 6 |
| 80 | Engine Speed Signal | 3 |
| 83 | LAN is Monitoring | 4 |
| 84 | Engine is in Fail-Safe Mode | 1 |
| 85 | LAN Communication Start Procedure Incomplete | 5 |
| 86 | Continued Reception After LAN Communication Starts | ..... |
