Monitoring DTC Status
- Connect GDS to "DATA LINK CONNECTOR (DLC)".
- IG key "ON", engine "OFF".

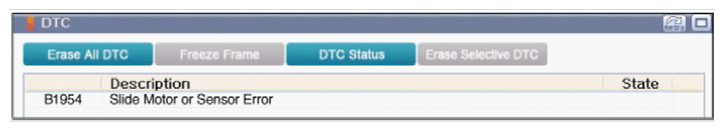

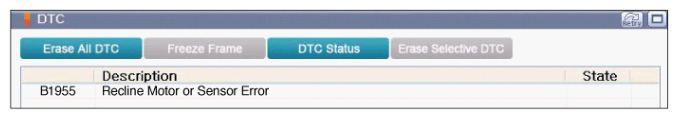

- Select "Diagnostic Trouble Codes (DTC)" with GDS.
- Monitor the diagnostic trouble code and present of the trouble code.
- Erase the DTC.
- Is the DTC present again?
YES
- Go to "CURRENT DATA ANALYSIS ".
NO
- PSM (DRIVER IMS CONTROL MODULE) memory was not cleared.
