Section 9 (A/C Compressor Controls (Manual)): Compressor: Inspection

WARNING: This page is about a different car, the 2006 Hyundai Tucson. However, it is still accessible from the selected car via links, so may be relevant.
  1. Check the plated parts of the pressure plate for color changes, peeling or other damage. If there is damage, replace the clutch set.
  2. Check the pulley bearing play and drag by rotating the pulley by hand. Replace the clutch set with a new one if it is noisy or has excessive play/drag.

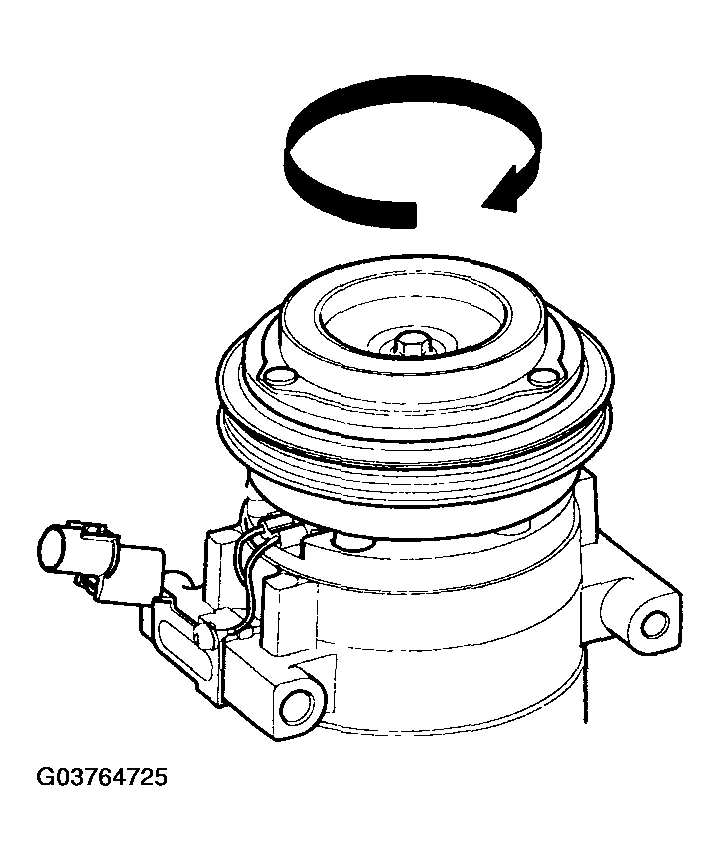

    Fig 1: Identifying Pulley Bearing Play And Drag
    G03764725Courtesy of HYUNDAI MOTOR CO.
  3. Measure the clearance between the pulley (A) and the pressure plate (B) all the way around. If the clearance is not within specified limits, remove the pressure plate (see DISASSEMBLY ) and add or remove shims as needed to increase or decrease clearance.

    Clearance: 0.5 +/- 0.15 mm (0.020 +/- 0.006 in.)

    NOTE: The shims are available in seven thicknesses: 0.7 mm, 0.8 mm, 0.9 mm, 1.0 mm, 1.1 mm, 1.2 mm and 1.3 mm.

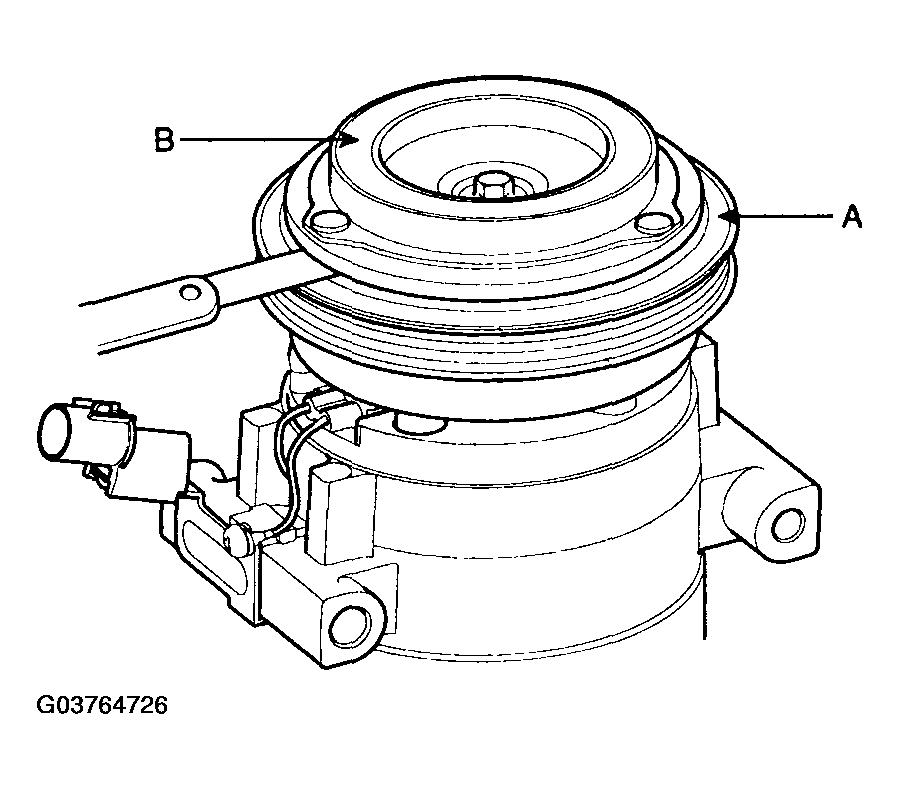

    Fig 2: Measuring Clearance Between Pulley And Pressure Plate
    G03764726Courtesy of HYUNDAI MOTOR CO.
  4. Check operation of the magnetic clutch. Connect the compressor side terminals to the battery (+) terminal and the ground battery (-) terminal to the compressor body. Check the magnetic clutch operating noise to determine the condition.

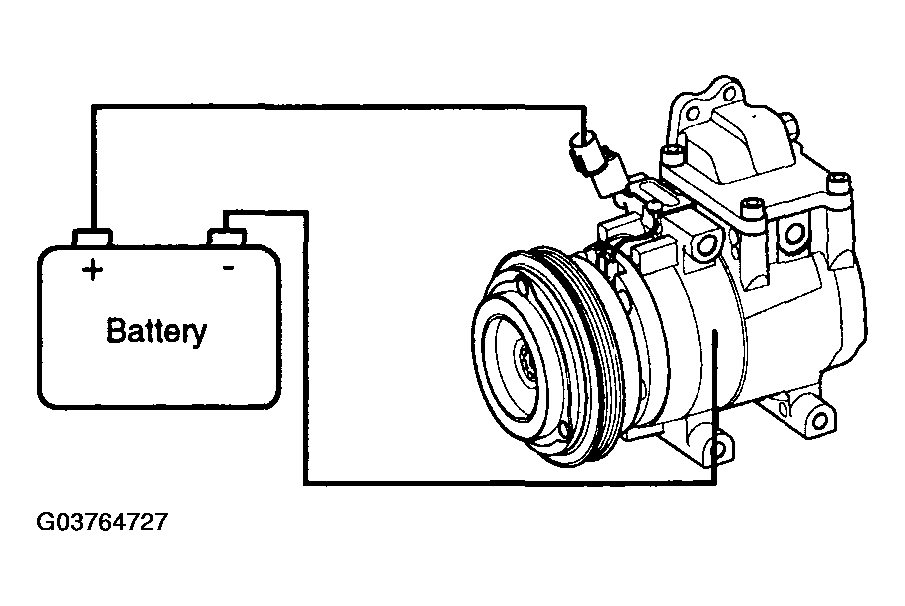

    Fig 3: Checking Magnetic Clutch Operation
    G03764727Courtesy of HYUNDAI MOTOR CO.
