Section 9 (A/C Compressor Controls (Manual)): Compressor: Disassembly

WARNING: This page is about a different car, the 2006 Hyundai Tucson. However, it is still accessible from the selected car via links, so may be relevant.

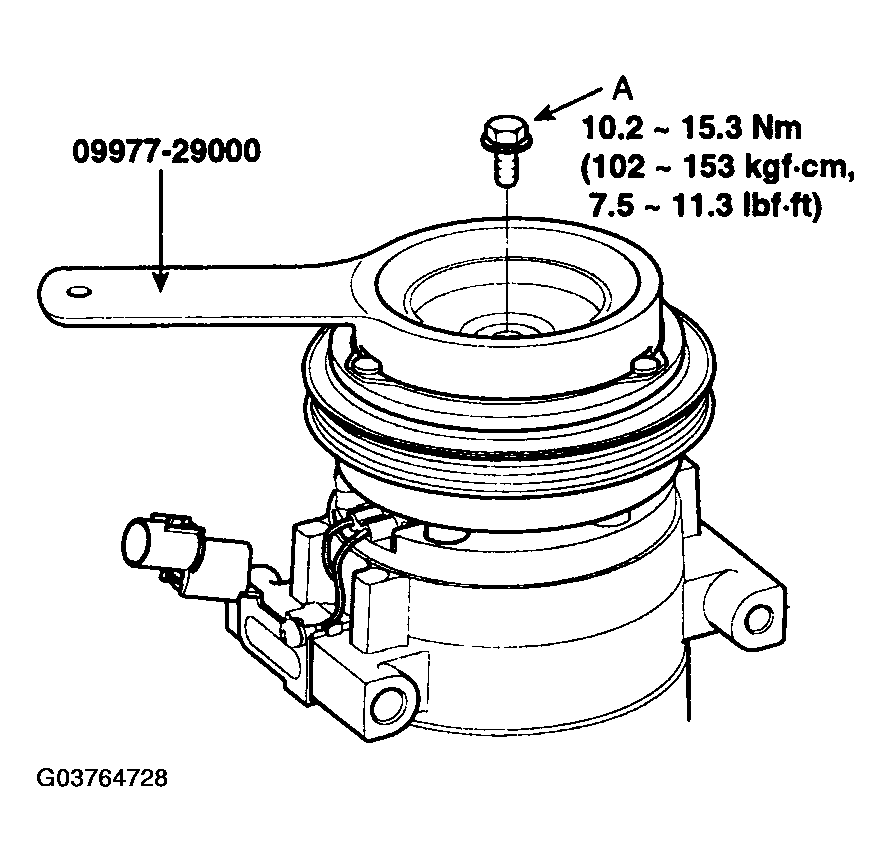

Remove the center bolt (A) while holding the pressure plate with a commercially available pressure plate bolt remover; Special tool number 09977-29000.

Fig 1: Removing/Installing Center Bolt Using Special Tool With Torque Specifications
Courtesy of HYUNDAI MOTOR CO.

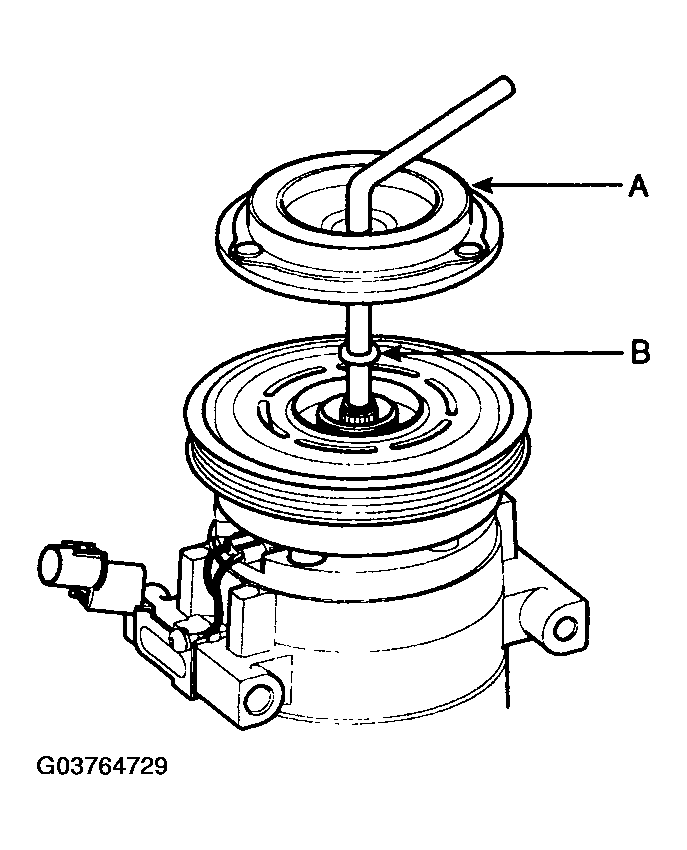

Remove the pressure plate (A) and shim (B), taking care not to lose the shims. If the clutch needs adjustment, increase or decrease the number and thickness of shims as necessary, then reinstall the pressure plate, and recheck its clearance (see DISASSEMBLY ).

Fig 2: Removing Pressure Plate And Shim
Courtesy of HYUNDAI MOTOR CO.

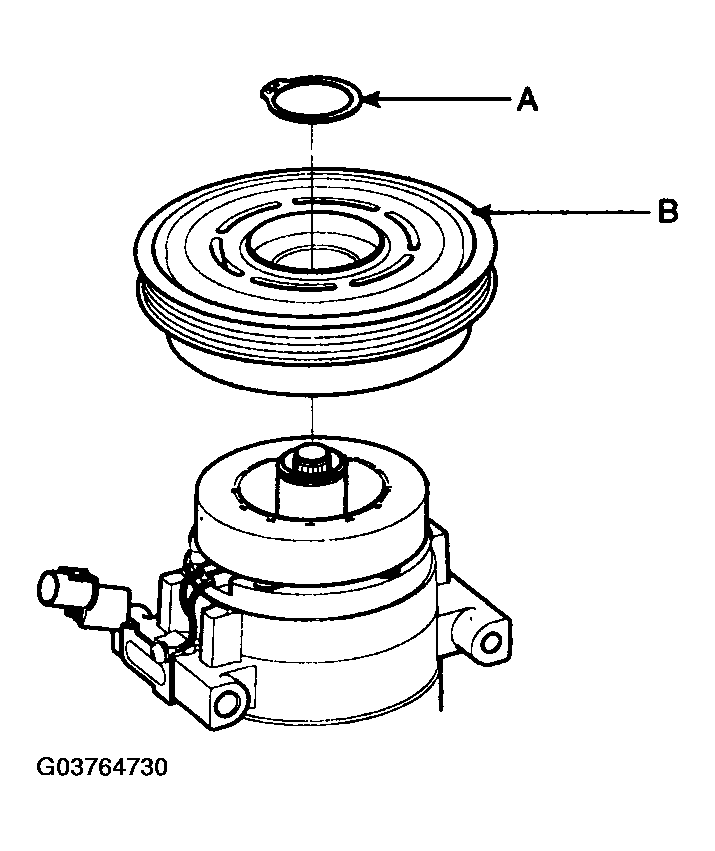

If you replace the field coil, remove snap ring (A) with snap ring pliers.
NOTE:
- Be careful not to damage the pulley (B) and compressor during removal/installation.
- Once snap ring (A) is removed, replace it with a new one.

  Fig 3: Identifying Snap Ring & Pulley
  Courtesy of HYUNDAI MOTOR CO.

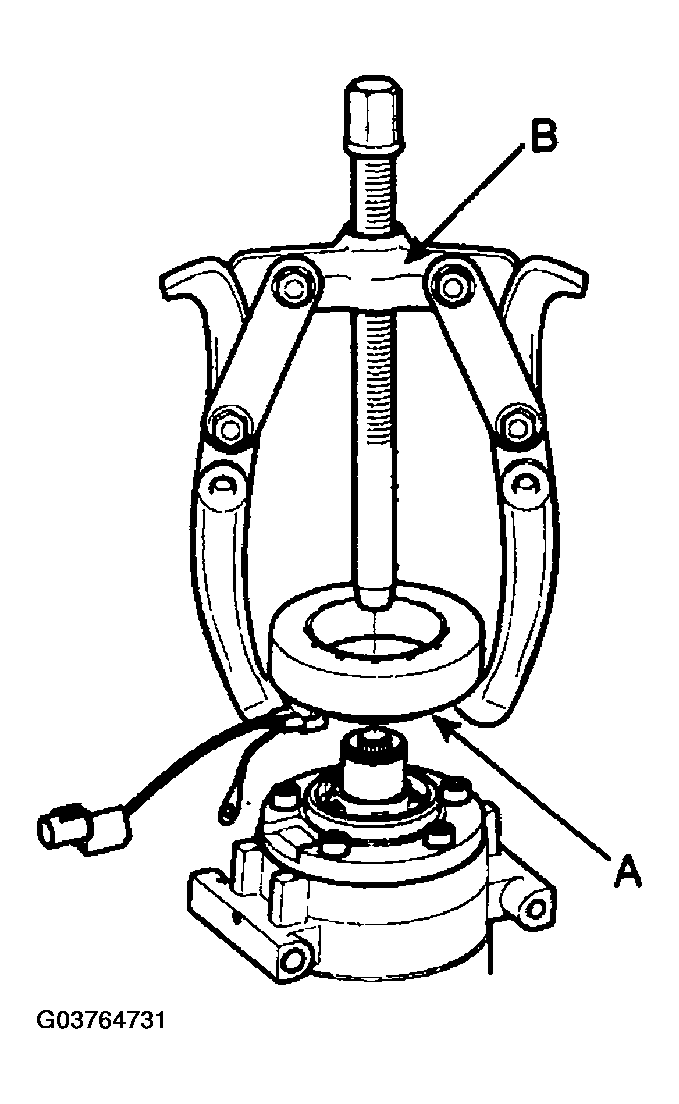

Remove the screw from the field coil ground terminal. Remove the field coil (A) from the shaft with a puller (B). Be careful not to damage the coil and compressor.

Fig 4: Removing Field Coil From Shaft With Puller
Courtesy of HYUNDAI MOTOR CO.
Reassemble the compressor clutch in the reverse order of disassembly, and note these items:
- Clean the pulley and compressor sliding surfaces with non-petroleum solvent.
- Install new snap rings, and make sure they are fully seated in the groove.
- Make sure that the pulley turns smoothly after it's reassembled.
