Initiator Replacement: Front

WARNING: This page is about a different car, the 2011 Honda Pilot, 2010 Honda Pilot, and 2009 Honda Pilot. However, it is still accessible from the selected car via links, so may be relevant.
  1. Turn the ignition switch to LOCK (0).
  2. Raise the vehicle on a lift (see LIFT AND SUPPORT POINTS ).
  3. Remove the front wheel.
  4. Remove the front inner fender (see FRONT INNER FENDER REPLACEMENT ).
  5. Disconnect the initiator connector (A).

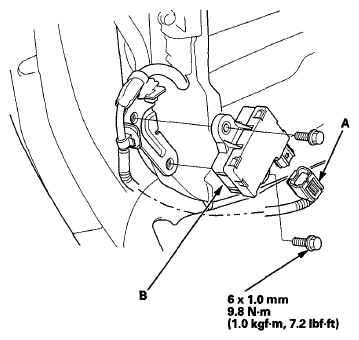

    Fig 1: Initiator Connector & Initiator With Torque Specifications
    G05962846Courtesy of AMERICAN HONDA MOTOR CO., INC.
  6. Remove the initiator (B) from the inner side of the wheel well.
  7. Install the new initiator in the reverse order of removal.
