Front Inner Fender Replacement

WARNING: This page is about a different car, the 2011 Honda Pilot, 2010 Honda Pilot, and 2009 Honda Pilot. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
  • Put on gloves to protect your hands.
  • Take care not to scratch the body.
  1. Remove the front inner fender (A).
    1. On the back of the wheel arch, remove the screws (B) securing the front inner fender and the side sill panel (C).
    2. From under the front bumper (D), remove the bolt (E) and the clips (F) securing the front bumper and the front inner fender.
    3. From the wheel arch, remove the screw (G, H) securing the front inner fender on the body.
    4. From the wheel arch, remove the screw (I) securing the front bumper.
    5. From the wheel arch, remove the clip (J) securing the front splash shield (K) and front inner fender, and remove the clips (L) securing the front inner fender on the body.
    6. Pull out the front inner fender.

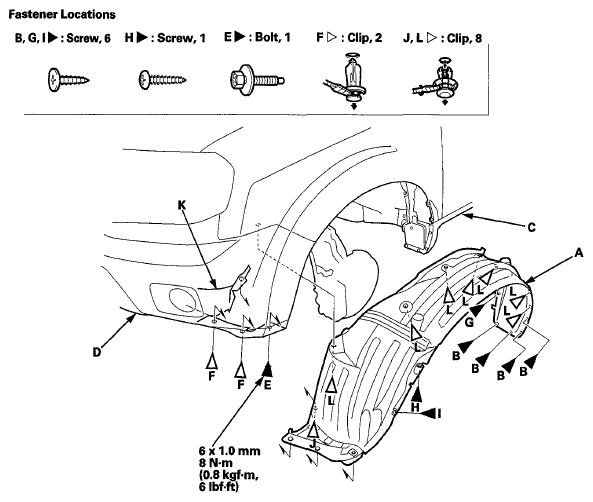

    Fig 1: Front Inner Fender Fastener Location With Torque Specifications
    G05963569Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Install the inner fender in the reverse order of removal, and note these items:
    • If the clips are damaged or stress-whitened, replace them with new ones.
    • Push the clips into place securely.
