CVT Driven Pulley Pressure Control Solenoid Valve Test

WARNING: This page is about a different variant/trim than selected.

Remove the air cleaner (see AIR CLEANER ELEMENT INSPECTION/REPLACEMENT ).
Disconnect the solenoid wire harness 8P connector (A).

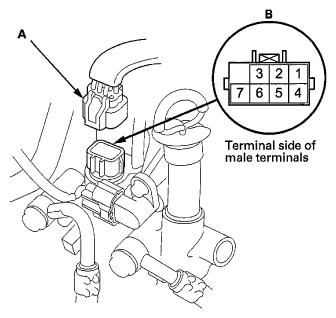

Fig 1: Identifying Solenoid Wire Harness 7P Connector Terminals
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Measure the CVT driven pulley pressure control solenoid valve resistance between solenoid wire harness 7P connector (B) terminals No. 3 and No. 6.
Standard: 3.8-6.8 Ω
If the resistance is out of standard, check for open or short in the solenoid wire harness. If the wires are OK, replace the CVT driven pulley pressure control solenoid valve (see CVT DRIVEN PULLEY PRESSURE CONTROL SOLENOID VALVE REPLACEMENT ).
Connect a jumper wire from the battery positive terminal to solenoid wire harness 7P connector terminal No. 3, and connect another jumper wire from the battery negative terminal to terminal No. 6. A clicking sound should be heard.
If no clicking sound is heard, remove the CVT driven pulley pressure control solenoid valve, and clean it, then recheck. Replace the CVT driven pulley pressure control solenoid valve if a problem recurs (see CVT DRIVEN PULLEY PRESSURE CONTROL SOLENOID VALVE REPLACEMENT ).
