Tailgate Latch Switch Test

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2015 Honda Crosstour, 2014 Honda Crosstour, 2013 Honda Crosstour, 2012 Honda Crosstour, and 2011 Honda Accord Crosstour. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the tailgate lower trim panel (see TRIM REMOVAL/INSTALLATION - TAILGATE AREA ).
  2. Disconnect the 4P connector (A) from the tailgate latch assembly (B).

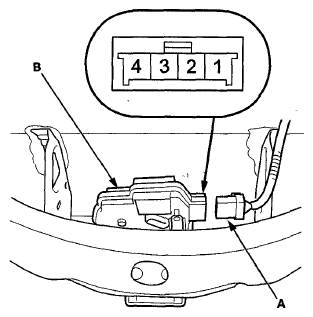

    Fig 1: Identifying 4P Connector And Tailgate Latch Assembly
    G06420307Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Check for continuity between the terminals in each switch position according to the table.
    Fig 2: Identifying Lens And Bulb
    G00505294Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. If the continuity is not as specified, faulty tailgate latch switch; replace the tailgate latch (see TAILGATE LATCH REPLACEMENT ).
