Tailgate Latch Replacement

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2015 Honda Crosstour, 2014 Honda Crosstour, 2013 Honda Crosstour, 2012 Honda Crosstour, and 2011 Honda Accord Crosstour. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
  • Put on gloves to protect your hands.
  • If the tailgate latch cannot be unlocked by using the tailgate outer handle switch, remove the maintenance lid (A) from the tailgate lower trim panel, then turn the emergency lever (B) clockwise as shown.

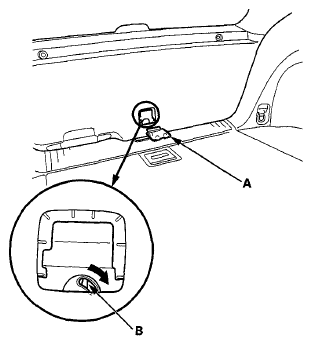

    Fig 1: Locating Maintenance Lid And Emergency Lever
    G06419971Courtesy of AMERICAN HONDA MOTOR CO., INC.
  1. Remove the tailgate lower trim panel (see TRIM REMOVAL/INSTALLATION - TAILGATE AREA ).
  2. Disconnect the tailgate release actuator/latch switch connector (A), then remove the bolts securing the tailgate latch (B).

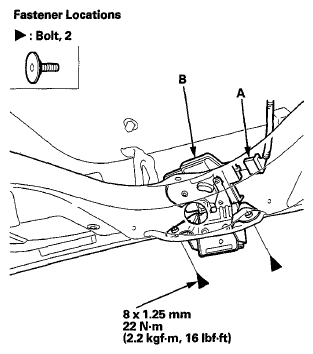

    Fig 2: Locating Tailgate Release Actuator/Latch Switch Connector And Tailgate Latch Bolts With Torque Specifications
    G06419972Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Pull out the tailgate latch (A), then remove it.

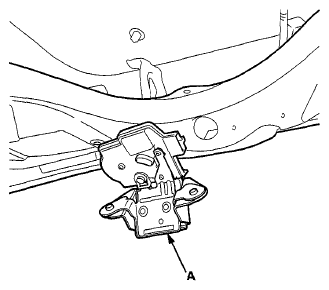

    Fig 3: Locating Tailgate Latch
    G06419973Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Install the latch in the reverse order of removal, and note these items:
    • Make sure the connector is plugged in properly.
    • Make sure the tailgate opens properly and locks securely.
