Interior Light Switch Test/Replacement

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2015 Honda Crosstour, 2014 Honda Crosstour, 2013 Honda Crosstour, 2012 Honda Crosstour, and 2011 Honda Accord Crosstour. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: The interior light switch is built into the moonroof switch, and it switches the front individual map light OFF and DOOR positions.
  1. Remove the front individual map lights (see FRONT INDIVIDUAL MAP LIGHT TEST/REPLACEMENT  ).
  2. Disconnect the moonroof switch 12P connector (A) and the map light 3P connector (B).

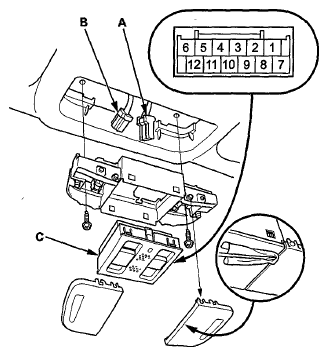

    Fig 1: Identifying Moonroof Switch 12P Connector, Map Light 3P Connector And Moonroof Switch
    G06420300Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Remove the screws, then remove the front individual map lights (B).
  4. Disconnect the connectors (C) from the map lights.
  5. Check for continuity between the terminals in each switch position according to the table.

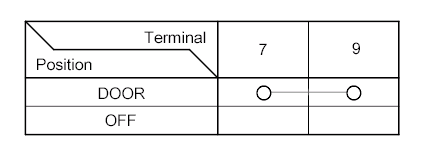

    Fig 2: Identifying Switch Terminal Continuity Chart
    G00505290Courtesy of AMERICAN HONDA MOTOR CO., INC.
  6. If the continuity is not as specified, replace the moonroof switch assembly.
  7. Install the parts in the reverse order of removal.
