Front Individual Map Light Test/Replacement

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2015 Honda Crosstour, 2014 Honda Crosstour, 2013 Honda Crosstour, 2012 Honda Crosstour, and 2011 Honda Accord Crosstour. However, it is still accessible from the selected car via links, so may be relevant.
  1. Turn the map light switch OFF.
  2. Carefully pry the lens (A) off with a small screwdriver.

    Individual Map Light: 8 W x 2

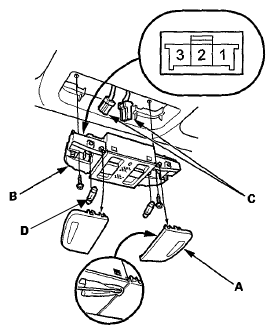

    Fig 1: Identifying Individual Map Lights, Lens And Map Lights Connectors
    G06420298Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Remove the screws, then remove the individual map lights (B).
  4. Disconnect the connectors (C) from the map lights.
  5. Check for continuity between the terminals in each switch position according to the table.

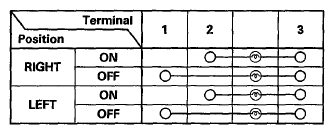

    Fig 2: Terminals Continuity Chart
    G06420299Courtesy of AMERICAN HONDA MOTOR CO., INC.
  6. If the continuity is not as specified, check the bulb(s) (D). If the bulb(s) are OK, replace the map light.
  7. Install the light in the reverse order of removal.
