Ambient Light Test/Replacement

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2015 Honda Crosstour, 2014 Honda Crosstour, 2013 Honda Crosstour, 2012 Honda Crosstour, and 2011 Honda Accord Crosstour. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: The ambient light is built into the moonroof switch.
  1. Remove the front individual map lights (see FRONT INDIVIDUAL MAP LIGHT TEST/REPLACEMENT  ).
  2. Disconnect the moonroof switch 12P connector (A) and the map light 3P connector (B).

    Ambient Light: LED

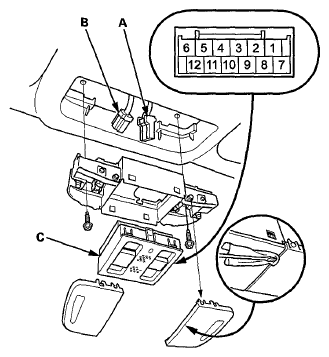

    Fig 1: Identifying Moonroof Switch 12P Connector, Map Light 3P Connector And Moonroof Switch
    G06420305Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Remove the moonroof switch (C) from the map light housing.
  4. At the moonroof switch 12P connector, check the light by connecting battery power to terminal No. 4 and ground to terminal No. 5. The ambient light should come on. If the light does not come on, replace the moonroof switch assembly.
  5. Install the parts in the reverse order of removal.
