Home >> Genesis >> 2017 >> G80 3.8, AWD >> Repair and Diagnosis >> Engine Performance >> System >> Engine Control System Diagnosis (1 Of 3) - 3.8L >> DTC P0197: Engine Oil Temperature Sensor Low Input >> Component Location

Component Location

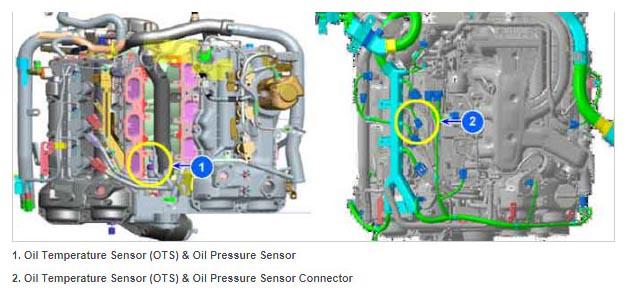

Fig 1: Engine Oil Temperature Sensor Low Input
G11357425Courtesy of HYUNDAI MOTOR AMERICA
