Engine Control System Diagnosis (1 Of 3) - 3.8L
>>
DTC P0090: Fuel Pressure Regulator 1 Control Circuit Open
>>
Specification
>>
Signal Waveform & Data
Signal Waveform & Data

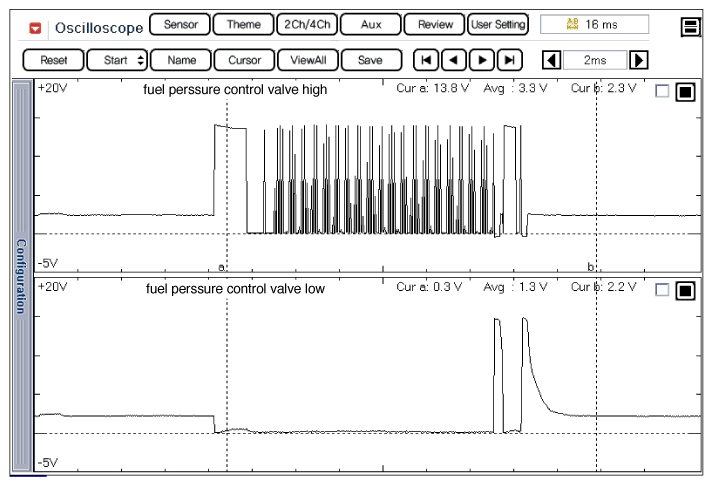

Fig 1: Screen Display - Normal Waveform Of Fuel Pressure Control Valve (FPCV) At Idle
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
