Climate Control Housing: Disassembly

WARNING: This page is about a different car, the 2022 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Left hand drive (LHD) shown below, right hand drive (RHD) similar.

NOTE: Removal steps in this procedure may contain installation details.

Remove the climate control housing. Refer to: Climate Control Housing .
Air Inlet Housing

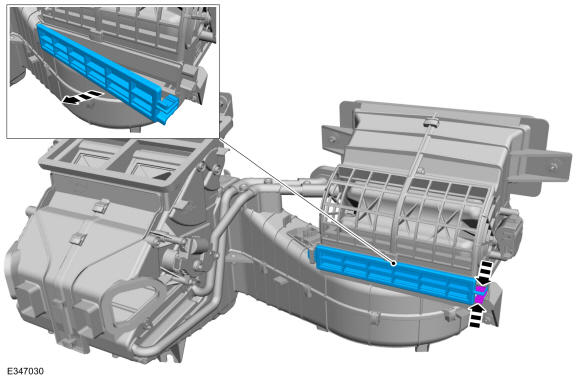

Open the cabin air filter access door.

Courtesy of FORD MOTOR COMPANY

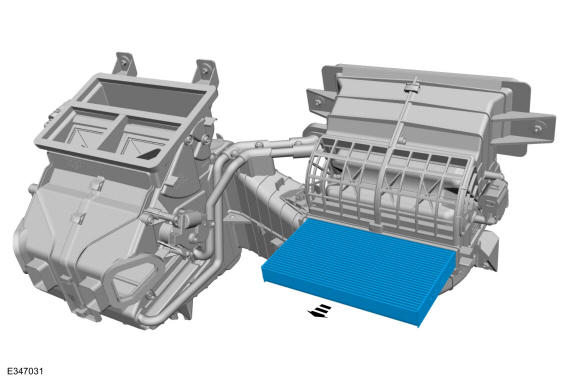

Remove the cabin air filter.

Courtesy of FORD MOTOR COMPANY
NOTE: Tabs can be easily damaged, use care when releasing.

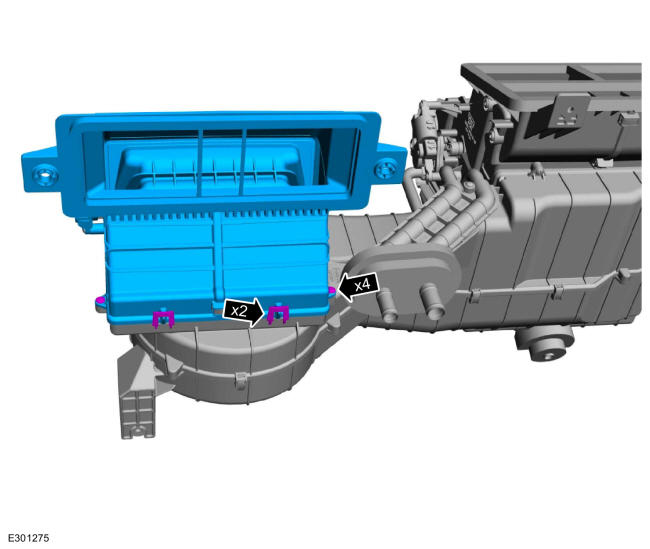

Remove the screws, release the tabs and remove the air inlet housing.

Courtesy of FORD MOTOR COMPANY

Air Distribution Housing

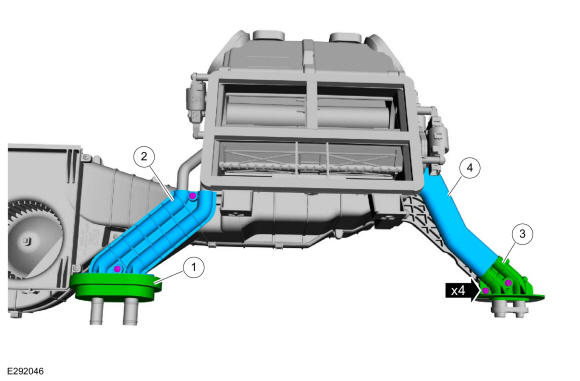

1. Remove the climate control housing seal.
2. Remove the retainers and the heater core tubes shroud.
3. Remove the retainers and the evaporator shroud.
4. Remove the evaporator tubes cover.
Courtesy of FORD MOTOR COMPANY

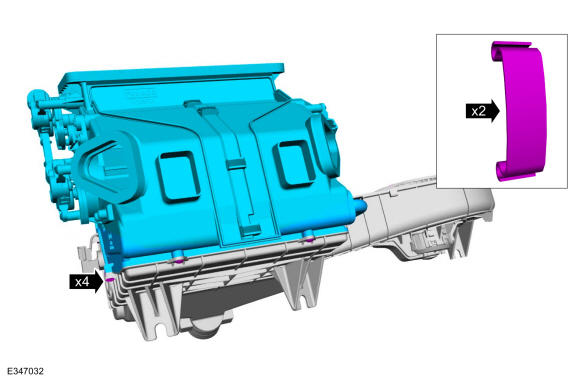

Remove the retainers and clips to remove the evaporator cover (Upper Heater Core Housing)*.

Courtesy of FORD MOTOR COMPANY

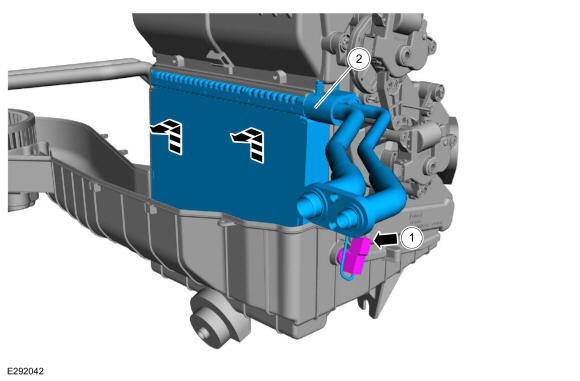

1. Remove the electrical connector mounting retainer.
2. Remove the evaporator assembly.
Courtesy of FORD MOTOR COMPANY

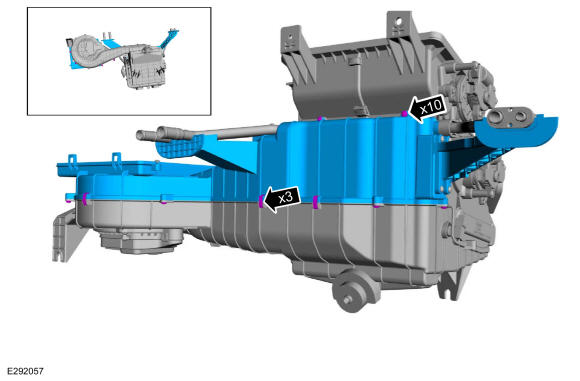

Remove the screws, release the clips and remove the air distribution housing.

Courtesy of FORD MOTOR COMPANY

Heater Core Housing

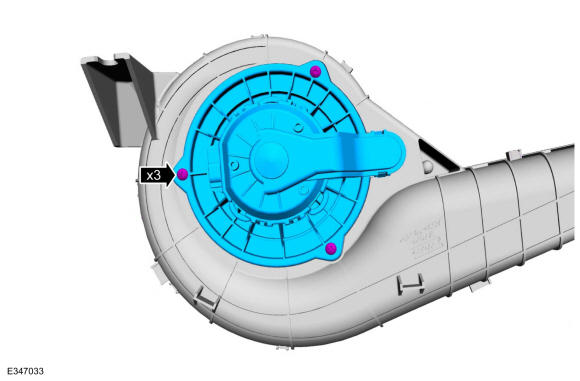

Remove the screws and the blower motor control module.

Courtesy of FORD MOTOR COMPANY

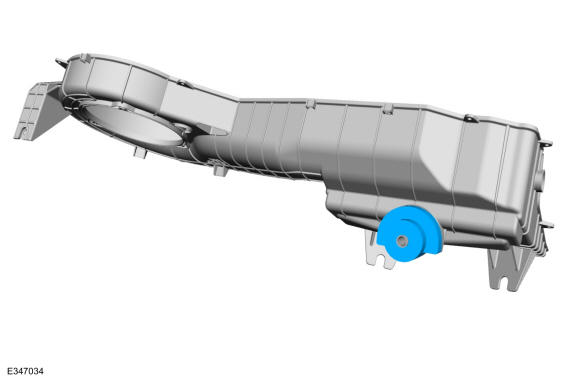

Remove the foam seal.

Courtesy of FORD MOTOR COMPANY
