Fault Detection
The PCM detects an open or short in the EGR control circuit after the KOEO test has run and set a DTC. The EGR actuator can be tested for a stuck or sticking valve by carrying out the output state low test while monitoring the exhaust gas recirculation position (EGRP) percentage.
CAUTION:

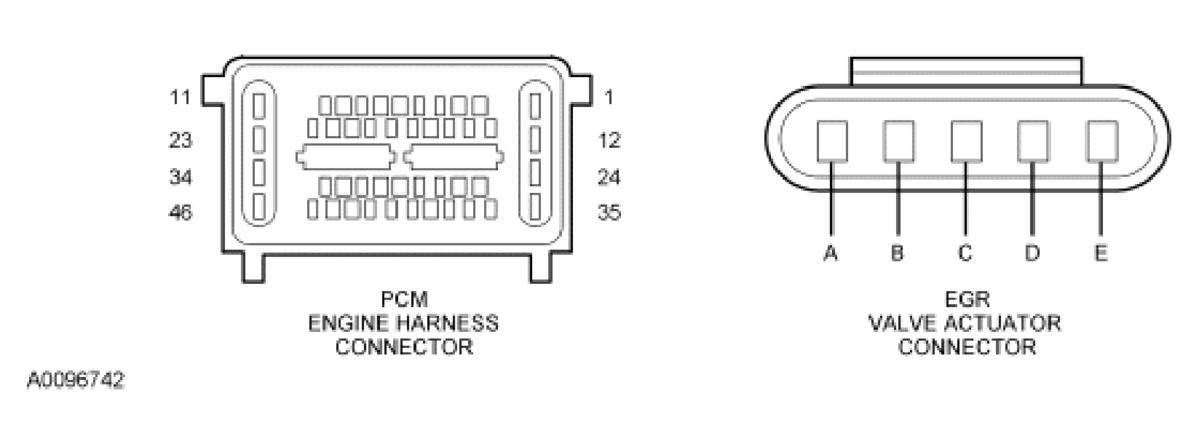

The PCM harness connectors must be properly seated and the connector latch properly attached to eliminate possible driveability concerns or a no-start condition. Installing PCM connectors on an angle may cause an improper connection, misdiagnosis, and damaged components. Install the connector until the lever pivots and seats itself. Apply light pressure to get the connector into position on the PCM and then fully seat the connector.
NOTE:
Visually inspect the harness connectors for corrosion, damage, proper mating, and correct pin tension.
