DTC Descriptions

NOTE: Compare the BARO sensor value with the local barometric values.

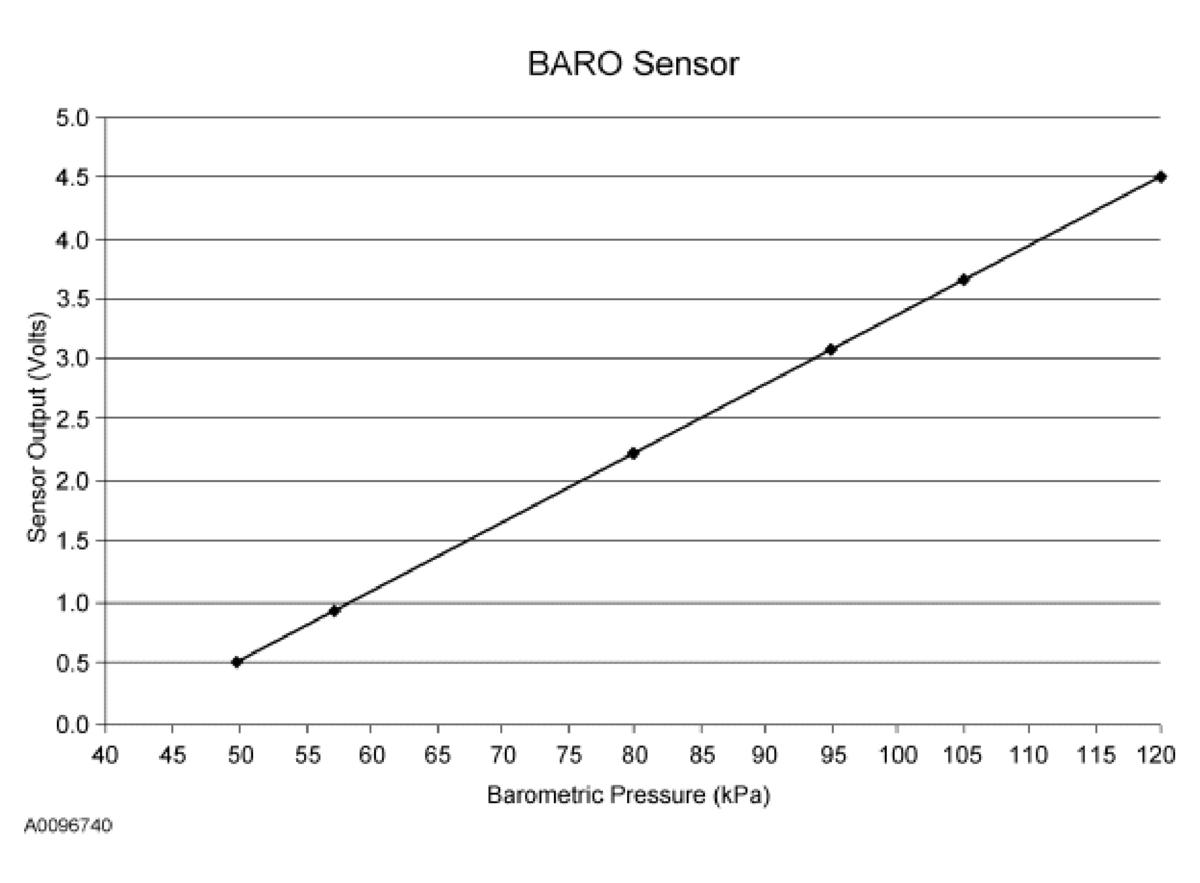

Fig 1: BARO Sensor Graph - E-Series Or F-Super Duty/Excursion
G03982244Courtesy of FORD MOTOR CO.
