Front Floor Console Compartment Replacement

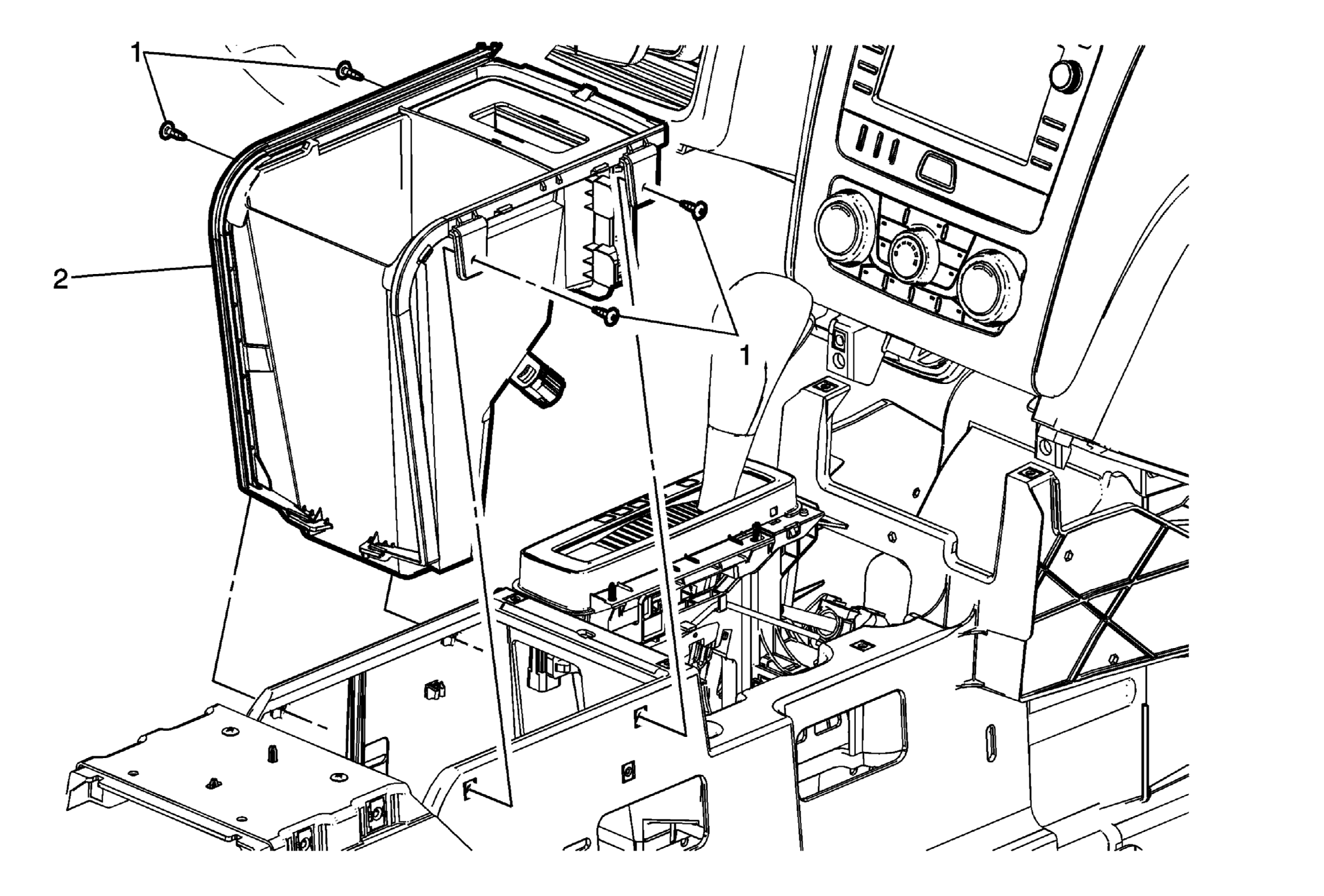

Fig 1: Front Floor Console Compartment
GM2871194Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Remove the front floor console cover. Refer to Front Floor Console Cover Replacement .
1 Front Floor Console Compartment Fasteners (Qty: 4)
CAUTION:

Refer to Fastener Caution .
2 Front Floor Console Compartment
Procedure
Disconnect all electrical connectors.
