Front Floor Console Cover Replacement

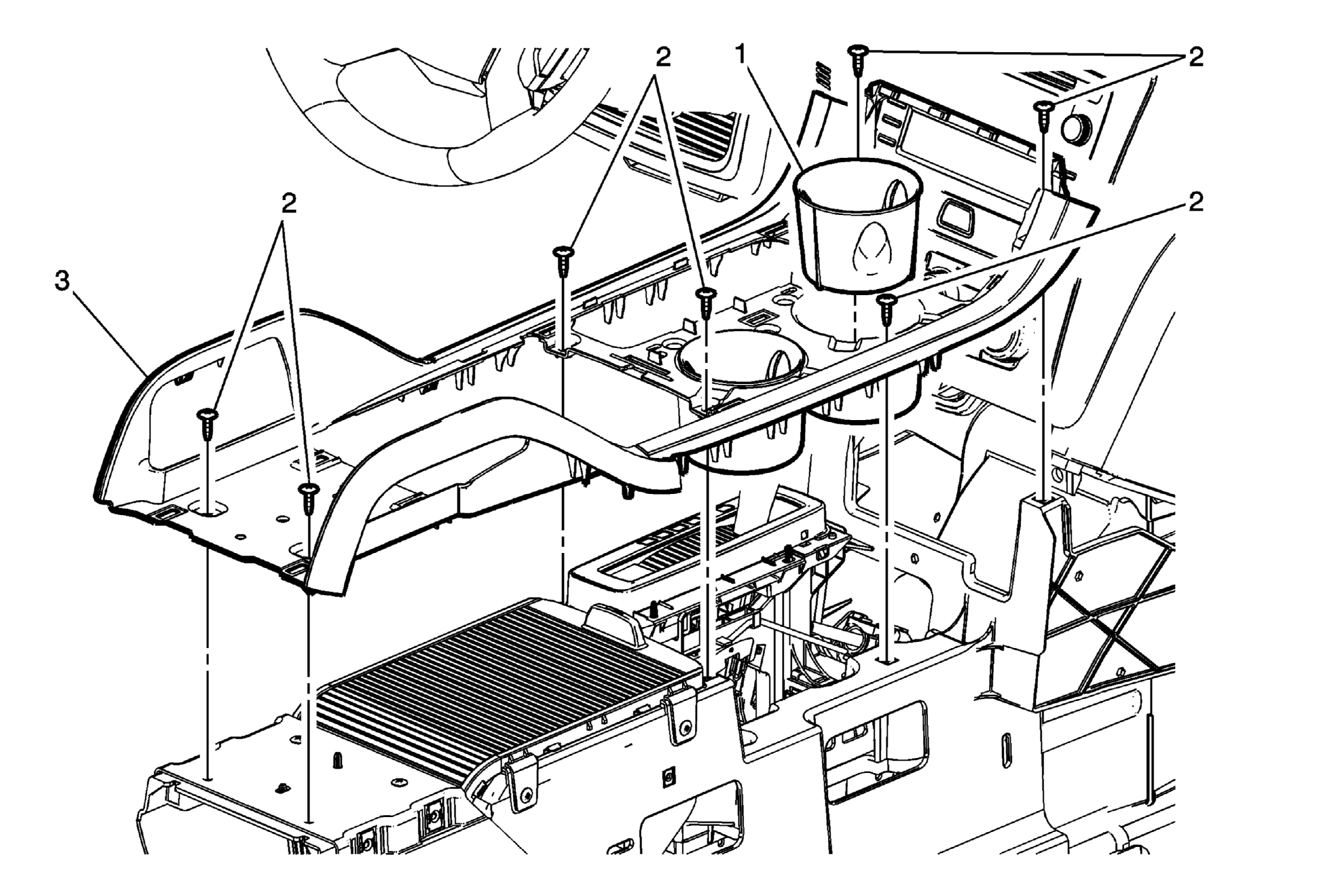

Fig 1: Front Floor Console Cover

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the front floor console accessory housing. Refer to Front Floor Console Accessory Housing Replacement (Acadia) Front Floor Console Accessory Housing Replacement (Enclave) Front Floor Console Accessory Housing Replacement (Traverse) . Remove the front floor rear console trim plate. Refer to Front Floor Rear Console Trim Plate Replacement .
1	Front Floor Console Cup Holder Liner Procedure Remove cup holder liner to access the fastener.
2	Front Floor Console Cover Screws (Qty: 7) CAUTION: Refer to Fastener Caution .
3	Front Floor Console Cover
