Front Floor Console Armrest Latch Replacement

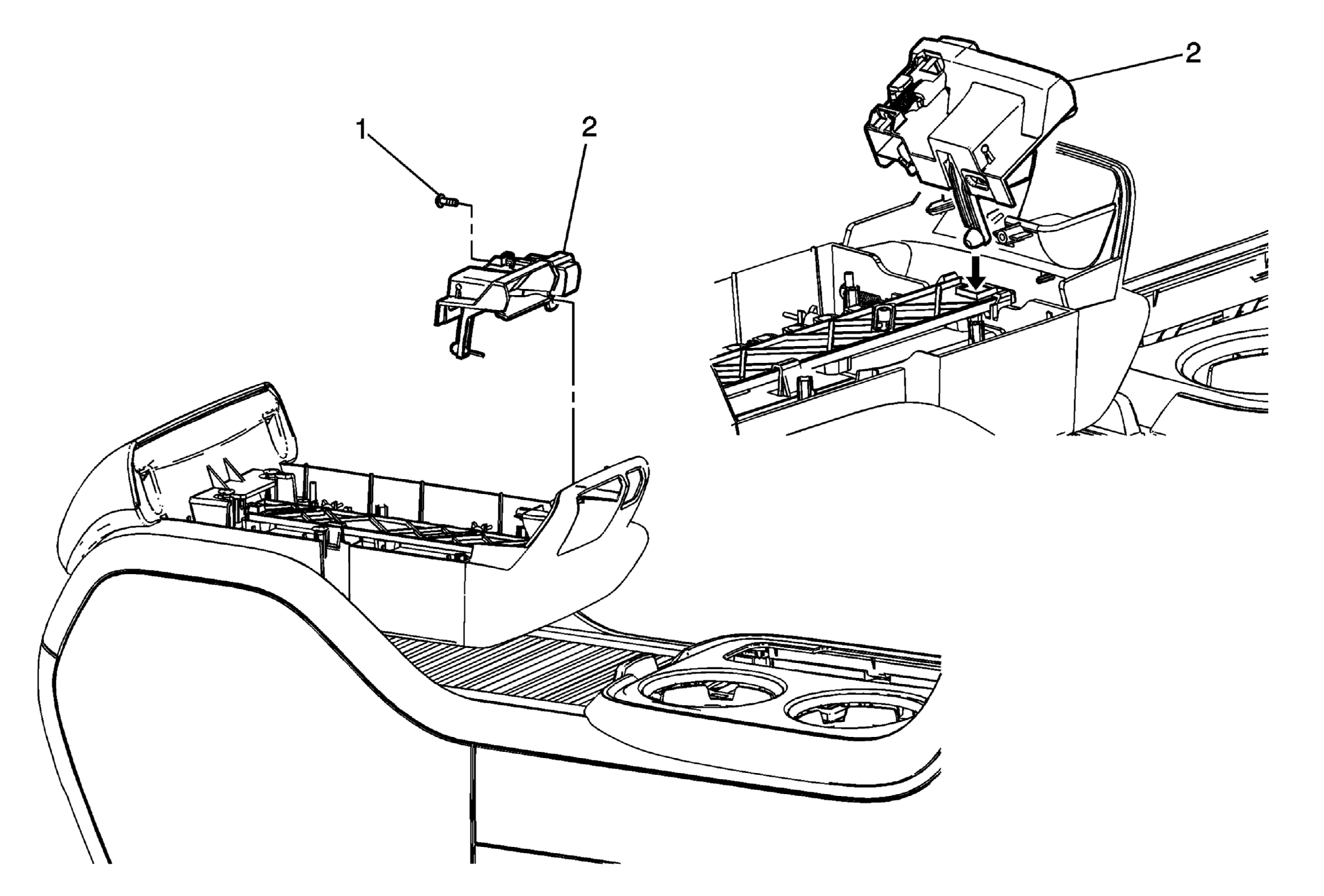

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the front floor console armrest compartment. Refer to Front Floor Console Armrest Compartment Replacement . |
|
| 1 | Front Floor Console Armrest Latch Screw
CAUTION:
Refer to Fastener Caution . |
| 2 | Front Floor Console Armrest Latch Assembly Procedure Ensure the rubber bumper on the end of the front floor console armrest latch is fully seated into the opening in the armrest assembly. |
