Front Floor Console Armrest Compartment Replacement

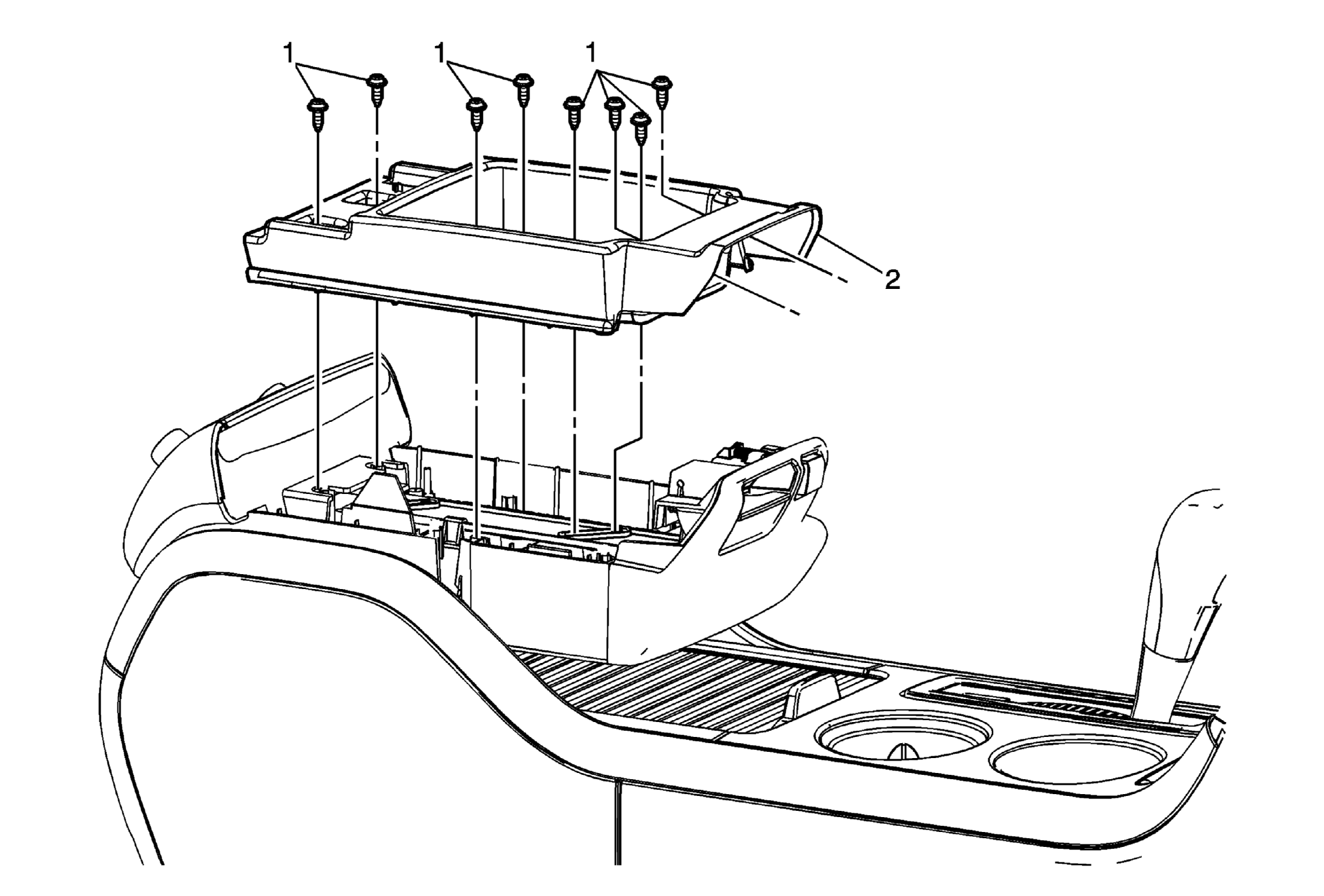

Fig 1: Front Floor Console Armrest Compartment

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Remove the front floor console armrest assembly. Refer to Front Floor Console Outer Armrest Replacement .
1	Front Floor Console Armrest Compartment Screw (Qty: 8) CAUTION: Refer to Fastener Caution . Procedure  Remove the liner to access the fasteners.
2	Front Floor Console Armrest Compartment
