Instrument Panel Center Compartment Replacement

WARNING: This page is about a different car, the 2010 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.

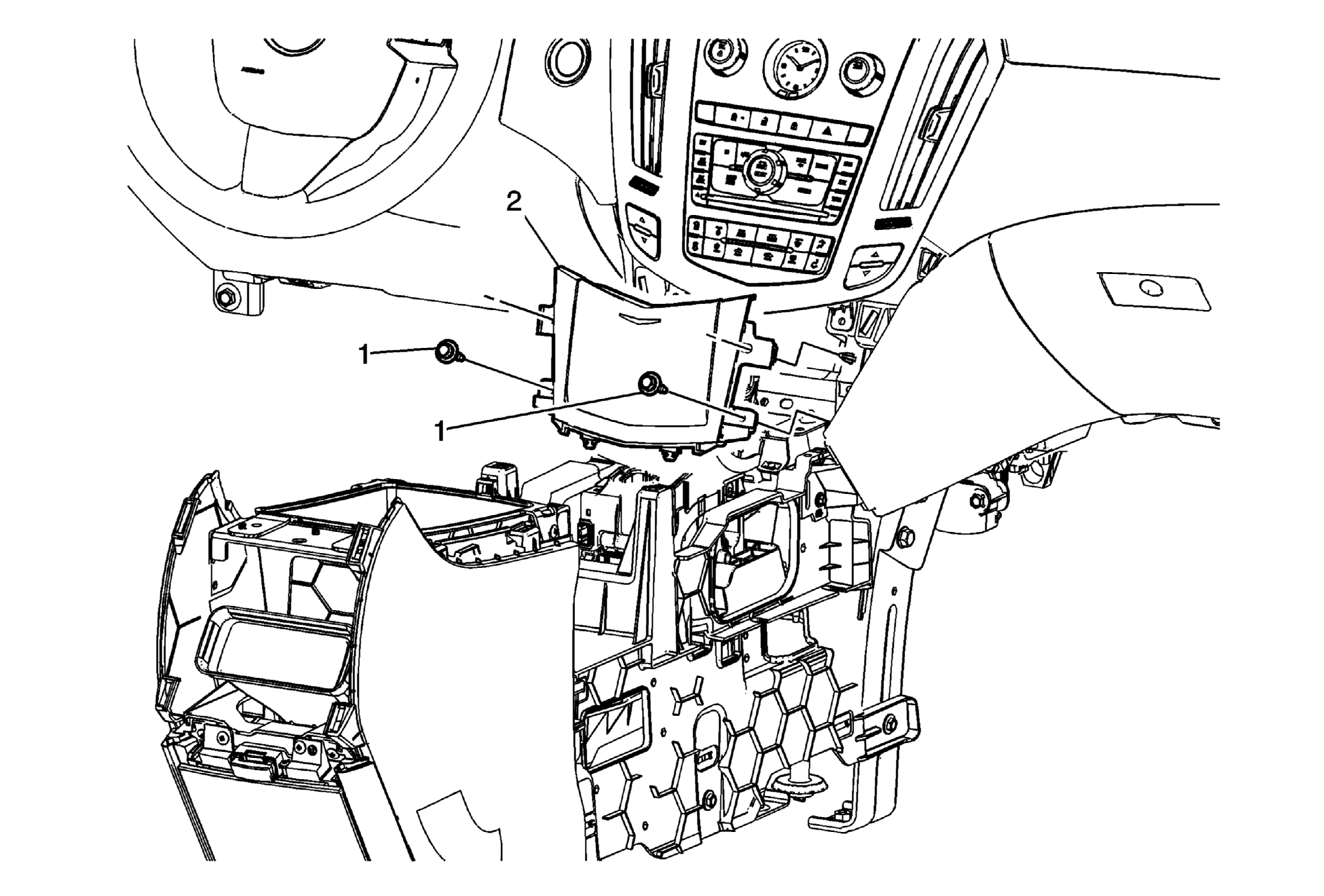

Fig 1: View Of Instrument Panel Center Compartment

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the front floor console trim plate. Refer to Front Floor Console Trim Plate Replacement .
1	Instrument Panel Center Compartment Fasteners (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten: 2.5 N.m (22 lb in)
2	Instrument Panel Center Compartment Assembly Procedures Grasp the instrument panel center compartment and pull rearward releasing the retainer clips securing the compartment to the instrument panel assembly. Disconnect the electrical connections, if applicable.

Callout

Component Name

Preliminary Procedure:
Remove the front floor console trim plate. Refer to Front Floor Console Trim Plate Replacement .

Instrument Panel Center Compartment Fasteners (Qty: 2)

CAUTION: Refer to Fastener Caution .

Tighten: 2.5 N.m (22 lb in)

Instrument Panel Center Compartment Assembly

Procedures

Grasp the instrument panel center compartment and pull rearward releasing the retainer clips securing the compartment to the instrument panel assembly.
Disconnect the electrical connections, if applicable.
