Front Floor Console Trim Plate Replacement

WARNING: This page is about a different car, the 2010 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.

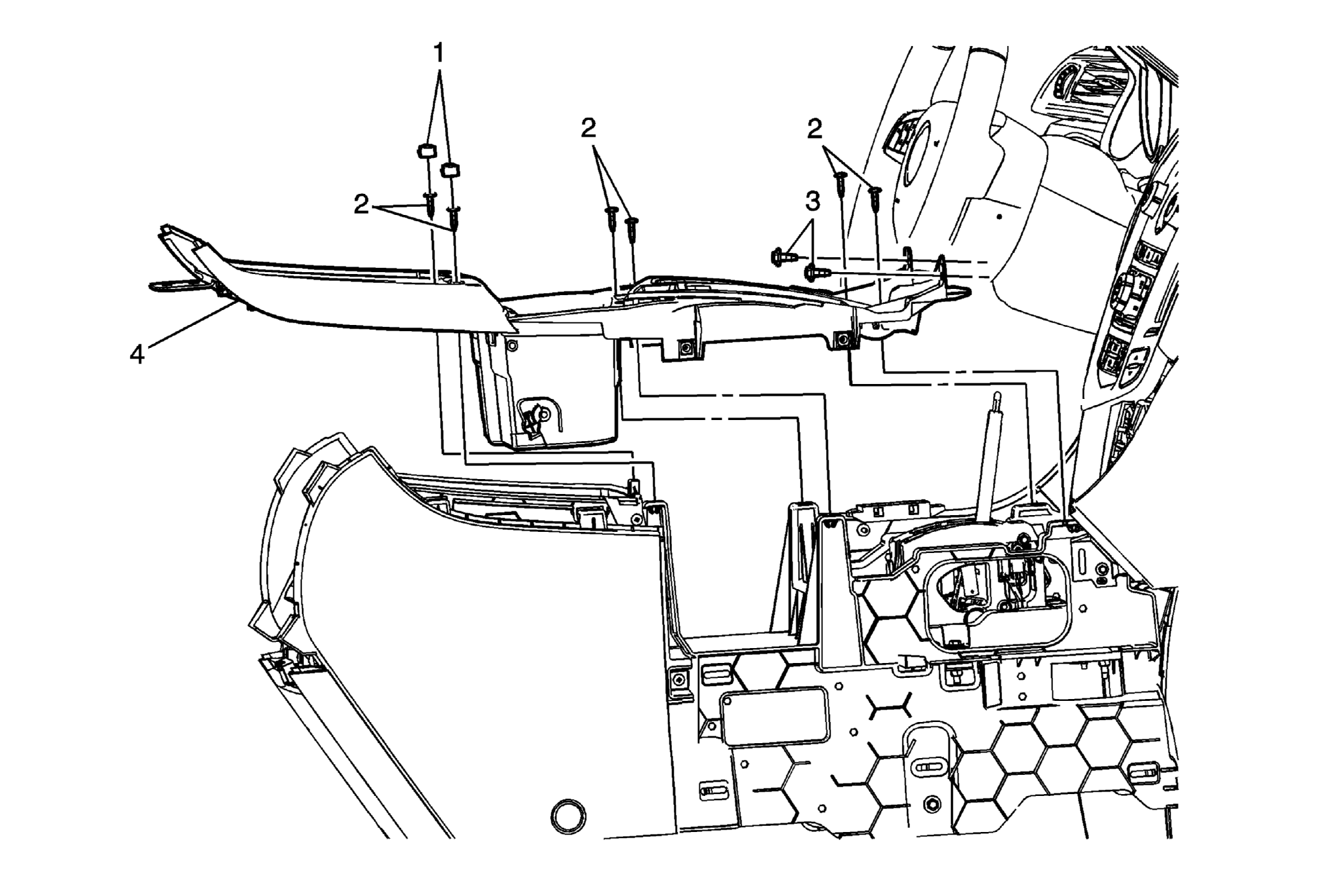

Fig 1: Identifying Front Floor Console Trim Plate & Fasteners

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Remove the right and left front floor console cover trim plate assemblies. Refer to Front Floor Console Cover Trim Plate Replacement - Right Side and Front Floor Console Cover Trim Plate Replacement - Left Side . Remove the automatic transmission control boot assembly. Refer to Transmission Control Lever Boot Replacement . Remove the front floor console upper rear trim panel assembly. Refer to Front Floor Console Rear Trim Panel Replacement - Upper . Remove the front floor console armrest assembly. Refer to Front Floor Console Armrest Replacement .
1	Front Floor Console Trim Plate Fastener Cover (Qty: 2)
2	Front Floor Console Trim Plate Fastener (Qty: 6) CAUTION: Refer to Fastener Caution . Tighten: 2.5 N.m (22 lb in)
3	Front Floor Console Fastener (Qty: 2) Tighten: 2.5 N.m (22 lb in)
4	Front Floor Console Trim Plate Assembly Procedure Disconnect the electrical connections. When replacing the front floor console trim plate, transfer all necessary components.
