Liftgate Hydraulic Pump Insulator Replacement

WARNING: This page is about a different car, the 2015 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.

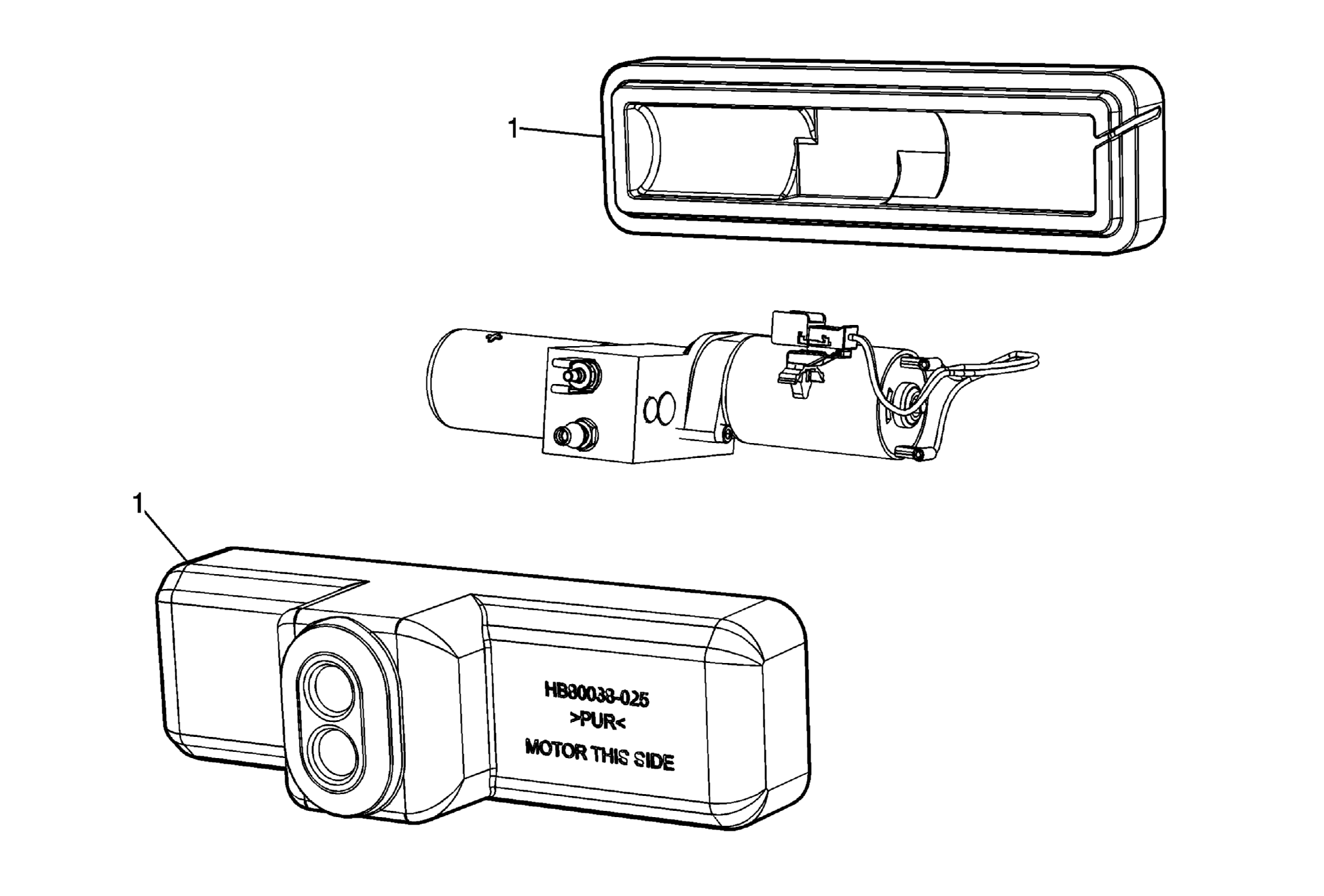

Fig 1: Liftgate Hydraulic Pump Insulator
GM2186344Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
WARNING:

Refer to Eye Protection Warning .

WARNING:

Refer to Liftgate Hydraulic System Warning .

Preliminary Procedures

  1. Remove the liftgate hydraulic pump. Refer to Liftgate Hydraulic Pump Replacement .
  2. Remove the liftgate hydraulic pump cover. Refer to Liftgate Hydraulic Pump Cover Replacement .
1 Liftgate Hydraulic Pump Insulator
Procedure
Separate the foam insulator halves from the liftgate hydraulic pump motor.
