Liftgate Hydraulic Pump Cover Replacement

WARNING: This page is about a different car, the 2015 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.

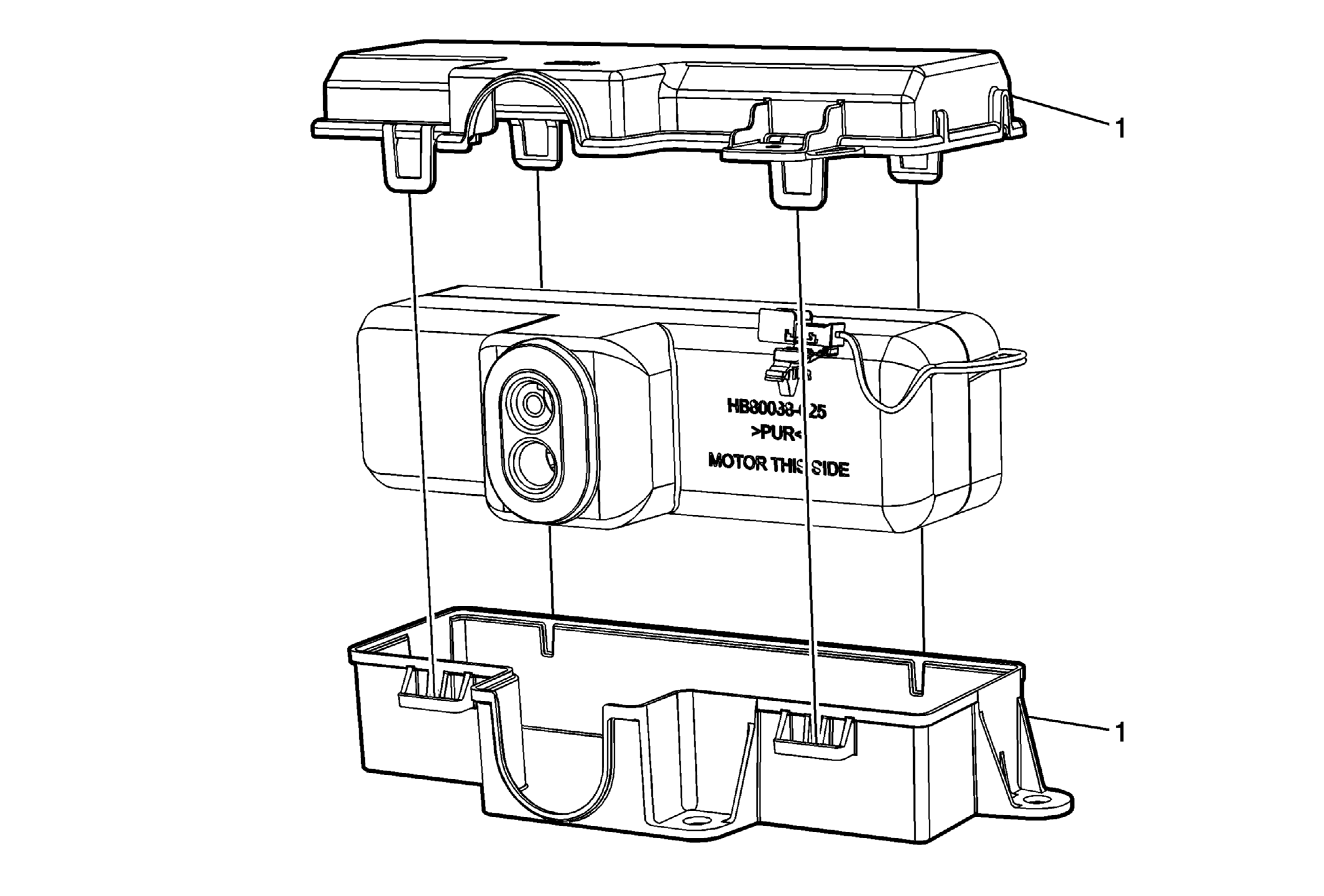

Fig 1: Liftgate Hydraulic Pump Cover

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
WARNING: Refer to Eye Protection Warning . WARNING: Refer to Liftgate Hydraulic System Warning . Preliminary Procedures Open and support the liftgate. Disconnect the battery. Refer to Battery Negative Cable Disconnection and Connection . Remove the liftgate hydraulic pump from the vehicle. Refer to Liftgate Hydraulic Pump Replacement .
1	Liftgate Hydraulic Pump Cover Procedure Separate the cover halves from the liftgate pump by releasing the retainer tabs. Inspect the liftgate hydraulic system for proper operation before final assembly of the trim panels. Refer to Liftgate Hydraulic System Refilling , and Liftgate Hydraulic System Bleeding .

Callout

Component Name

WARNING:

Refer to Eye Protection Warning .

WARNING:

Refer to Liftgate Hydraulic System Warning .

Preliminary Procedures

Open and support the liftgate.
Disconnect the battery. Refer to Battery Negative Cable Disconnection and Connection .
Remove the liftgate hydraulic pump from the vehicle. Refer to Liftgate Hydraulic Pump Replacement .

Liftgate Hydraulic Pump Cover

Procedure

Separate the cover halves from the liftgate pump by releasing the retainer tabs.
Inspect the liftgate hydraulic system for proper operation before final assembly of the trim panels. Refer to Liftgate Hydraulic System Refilling , and Liftgate Hydraulic System Bleeding .
