Window Channel Replacement - Front Door Front/Rear

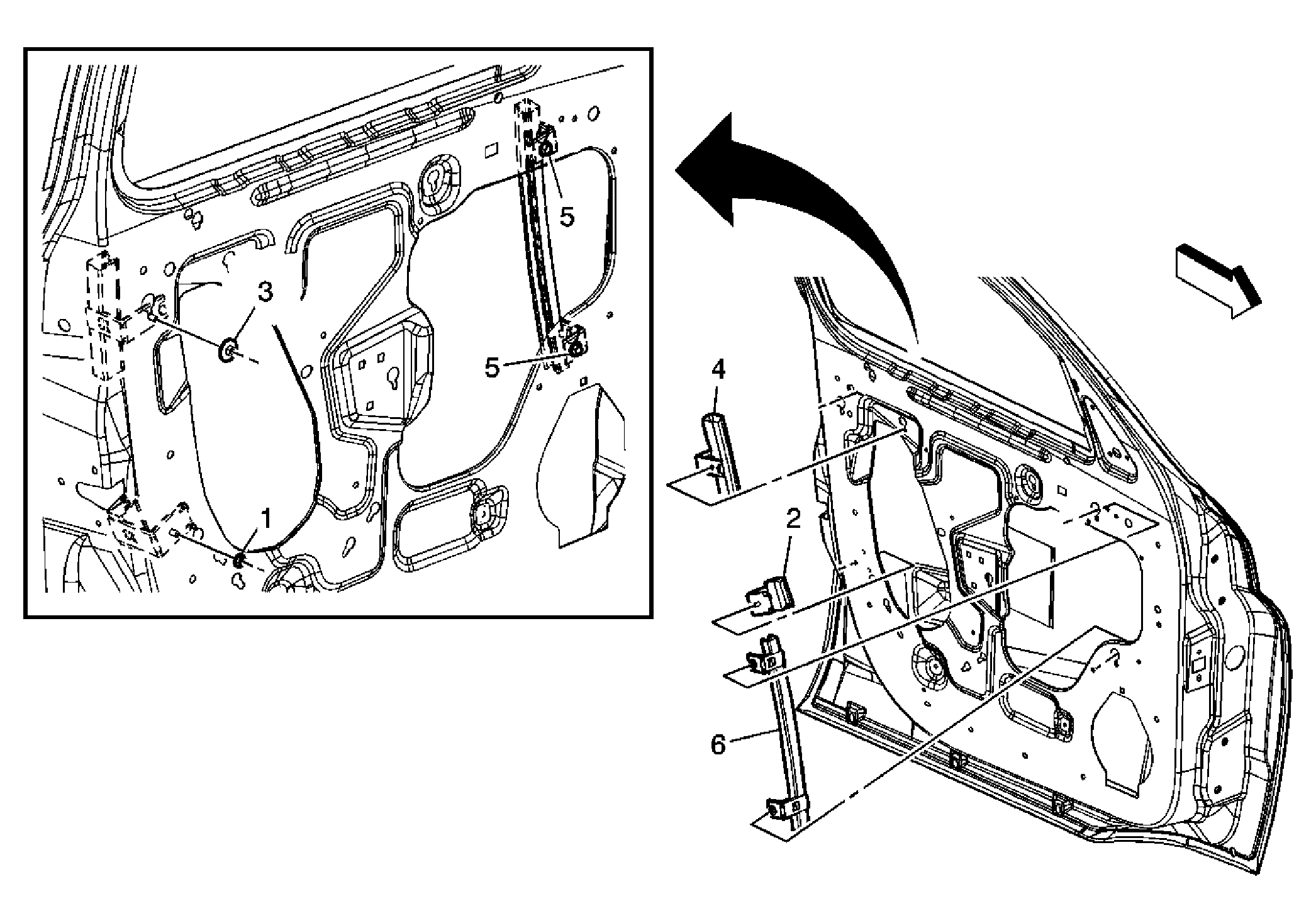

Fig 1: Window Channel Replacement - Front Door Front/Rear

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Fastener Tightening Specifications: Refer to Fastener Tightening Specifications . Preliminary Procedures Remove the front door trim panel. Refer to Trim Panel Replacement - Side Front Door . Remove the rear door water deflector. Refer to Water Deflector Replacement - Front Door . Position the window in the full up position.
1	Nut, Front Side Door Window Channel Tighten: 10 N.m (89 lb in)
2	Channel, Front Side Door Rear Lower Window
3	Nut, Front Side Door Window Channel Tighten: 10 N.m (89 lb in)
4	Channel, Front Side Door Rear Upper Window
5	Bolt, Front Side Door Window Channel (Qty: 2) Tighten: 10 N.m (89 lb in)
6	Channel, Front Side Door Front Window
