Water Deflector Replacement - Front Door

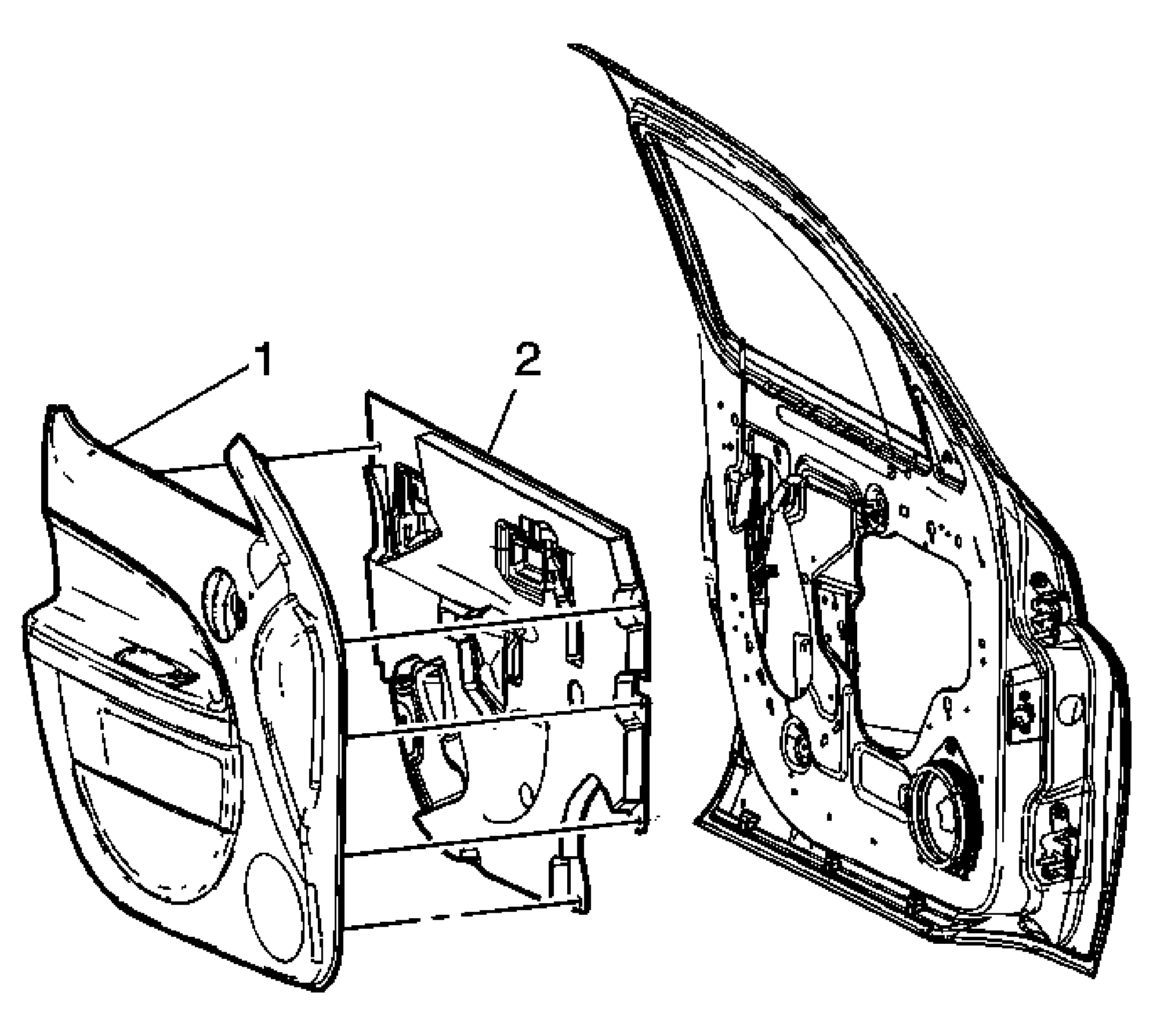

Fig 1: Water Deflector Replacement - Front Door

Courtesy of GENERAL MOTORS CORP.

Water Deflector Replacement - Front Door

Callout	Component Name
Fastener Tightening Specifications:  Refer to Fastener Tightening Specifications .
1	Trim Assembly, Front Side Door Refer to Trim Panel Replacement - Side Front Door .
2	Deflector Assembly, Front Side Door Water
