Door Handle Replacement - Front Outside

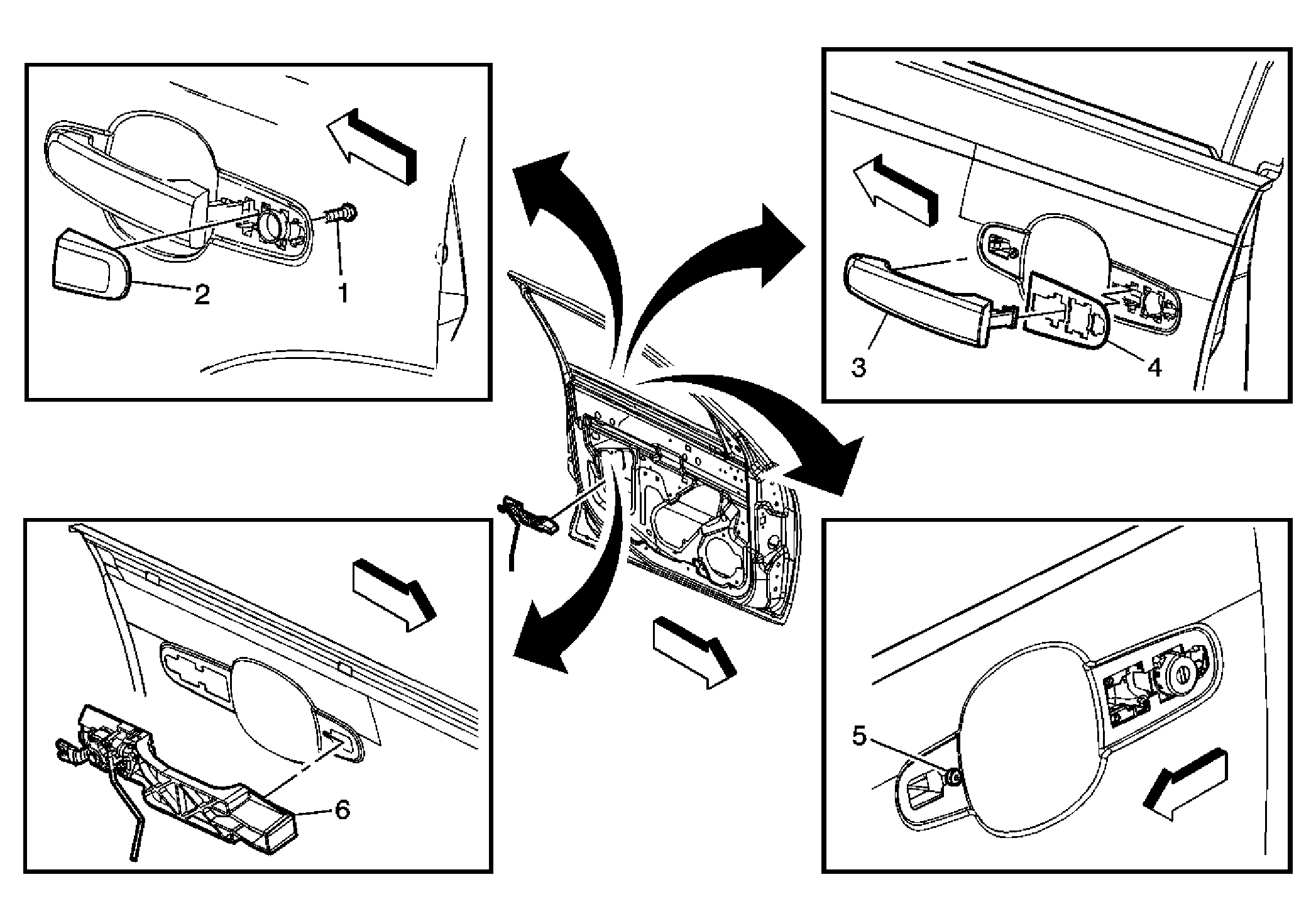

Fig 1: Door Handle Replacement - Front Outside

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
NOTE: Refer to Fastener Notice . Fastener Tightening Specifications: Refer to Fastener Tightening Specifications . Preliminary Procedures Remove the front door interior trim panel. Refer to Trim Panel Replacement - Side Front Door . Remove the water deflector. Refer to Water Deflector Replacement - Front Door .
1	Screw, Front Side Door Outside Handle Cap Tighten: 3 N.m (25 lb in)
2	Cap, Front Side Door Outside Handle Tip: Pull the outside handle lever outward and hold while removing the cap.
3	Lever, Front Side Door Outside Handle
4	Seal, Front Side Door Outside Handle
5	Screw, Front Side Door Outside Handle Tighten: 9 N.m (80 lb in)
6	Housing Assembly, Front Side Door Outside Handle Tip: Disconnect the outside handle rod from the lock assembly before removing the handle.
