Installation Procedure

  1. GM5970038Courtesy of GENERAL MOTORS COMPANY

    Front Seat Belt Guide Adjuster (2) - Install

  2. If NEW threaded components are being installed, loosen the adhesive using a metal pick or similar tool before proceeding. If threaded components are reused, prepare the threaded components using the following steps:
    1. Remove any loose cured adhesive from the external threads of the components using a lint free cloth.
    2. Thread the cleaned components into the internal mating threads and remove to loosen trapped cured adhesive.
    3. Apply thread locking adhesive to the external threads of the components. Adhesives, Fluids, Lubricants, and Sealers
    4. Apply liquid thread locking adhesive in a strip along half of the length of the external threads, starting at the tip, just prior to installation.
    3. CAUTION:

    Refer to Fastener Caution .

  3. Front Seat Belt Adjust Bolt (1) - Install and tighten [2x] - Fastener Specifications
  4. GM5969101Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Some components not shown for graphic clarity.

    Front Seat Belt Intermediate Guide Bolt (2) - Install and tighten - Fastener Specifications

  5. Front Seat Belt Guide Bolt (1) - Install and tighten - Fastener Specifications

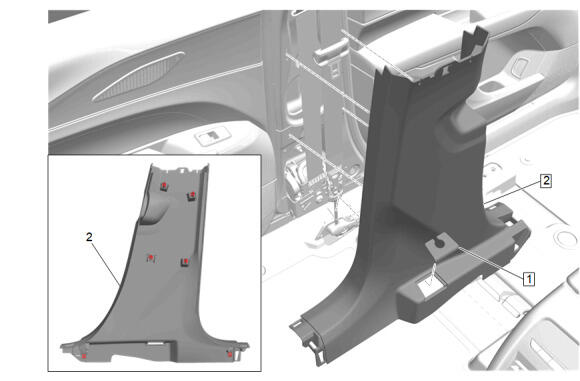

  6. GM5951560Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Some components not shown for graphic clarity.

    Feed the seat belt tensioner through the center pillar lower trim panel (2).

  7. Ensure the seat belt webbing does not become trapped during installation.
  8. Center Pillar Lower Trim Panel (2) - Install
  9. Center Pillar Lower Garnish Molding Lower Hole Cover (1) - Install
  10. GM5951533Courtesy of GENERAL MOTORS COMPANY

    Feed the seat belt through the Center Pillar Upper Trim Panel (3).

  11. Center Pillar Upper Trim Panel (3) - Install
  12. Center Pillar Upper Garnish Molding Bolt (2) - Install and tighten - Fastener Specifications
  13. Center Pillar Upper Trim Panel Bolt Cap (1) - Install

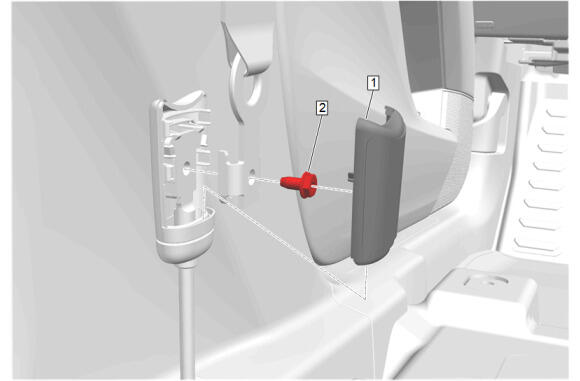

  14. GM5951534Courtesy of GENERAL MOTORS COMPANY

    If a NEW threaded component is being installed, loosen the adhesive using a metal pick or similar tool before proceeding. If threaded component is reused, prepare the threaded component using the following steps:

    1. Remove any loose cured adhesive from the external threads of the component using a lint free cloth.
    2. Thread the cleaned component into the internal mating threads and remove to loosen trapped cured adhesive.
    3. Apply thread locking adhesive to the external threads of the component. Adhesives, Fluids, Lubricants, and Sealers
    4. Ensure there are no gaps in the thread locking adhesive once applied to the component.
  15. Front Seat Belt Anchor Plate Tensioner Bolt (2) - Install and tighten - Fastener Specifications
  16. Front Seat Belt Anchor Plate Tensioner Cover (1) - Install

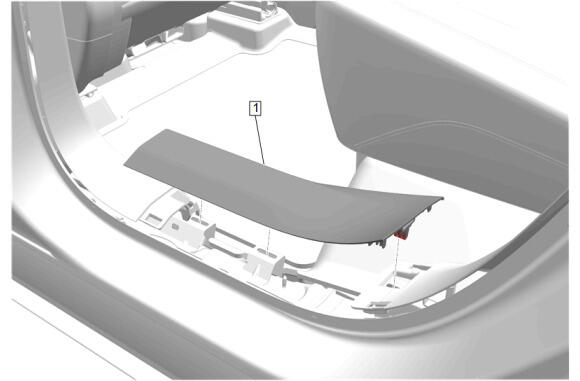

  17. GM5950620Courtesy of GENERAL MOTORS COMPANY

    Rear Side Door Sill Garnish Molding (1) - Install

  18. GM5950617Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connector.

  19. Starting at the front of the front side door sill garnish molding (1) engage the 2 retaining clips on the forward vertical wall.
  20. Work your way rearward engaging the front side door sill garnish molding retaining clips.
  21. Front Side Door Sill Garnish Molding (1) - Install
  22. GM5950619Courtesy of GENERAL MOTORS COMPANY

    Hood Primary and Secondary Latch Release Handle (1) - Install

  23. Enable the SIR System. SIR Disabling and Enabling
