Fastener Specifications

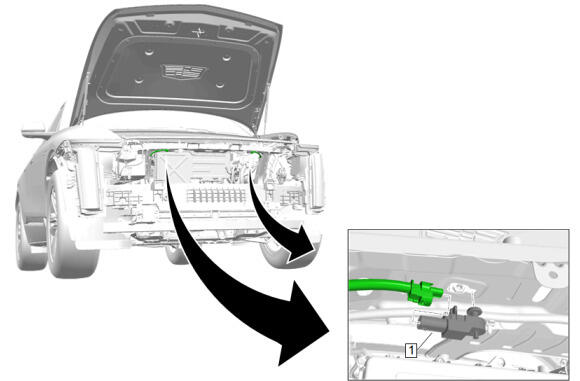

GM5966786Courtesy of GENERAL MOTORS COMPANY
Airbag Front End Discriminating Sensor

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Airbag Front End Discriminating Sensor [2x] - - 7.5 N.m (66 lb in) Airbag Front End Discriminating Sensor Replacement

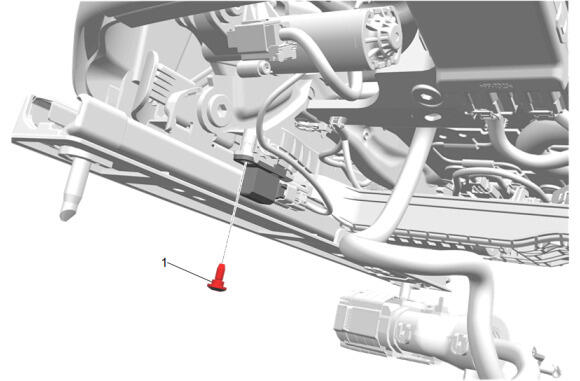

GM5980673Courtesy of GENERAL MOTORS COMPANY
Airbag Front Seat Position Sensor

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Seat Bolt - - 2.5 N.m (22 lb in) Airbag Front Seat Position Sensor Replacement

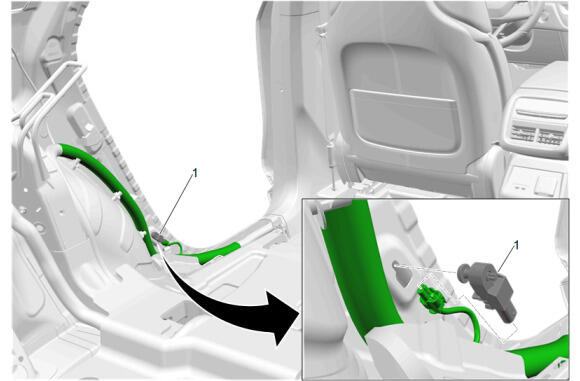

GM5969041Courtesy of GENERAL MOTORS COMPANY
Airbag Side Impact Rear Sensor

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Airbag Side Impact Rear Sensor - - 7.5 N.m (66 lb in) Airbag Side Impact Rear Sensor Replacement (- F47 / UKR) , or Airbag Side Impact Rear Sensor Replacement (F47 / UKR)

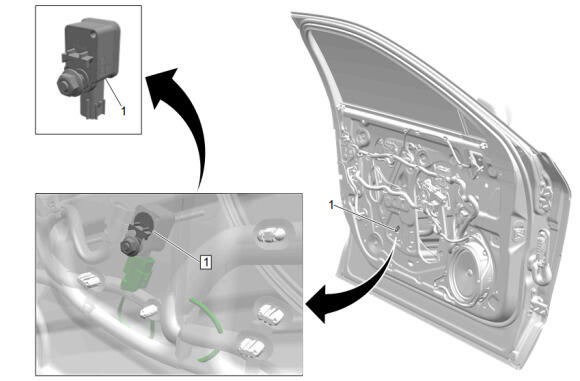

GM5967318Courtesy of GENERAL MOTORS COMPANY
Airbag Side Impact Sensor

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Airbag Side Impact Sensor - - 7.5 N.m (66 lb in) Airbag Side Impact Sensor Replacement

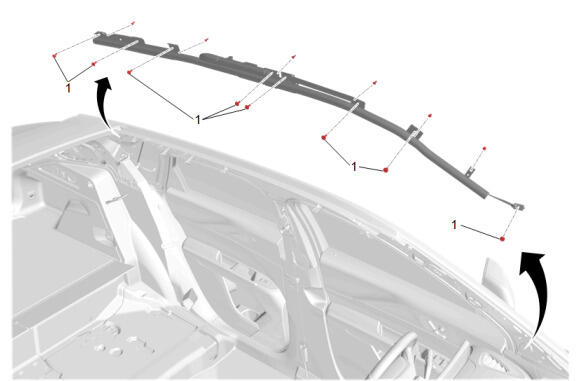

GM5980672Courtesy of GENERAL MOTORS COMPANY
Front and Rear Row Roof Rail Airbag

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Roof Rail Airbag Bolt [8x] - - 9 N.m (80 lb in) Front and Rear Row Roof Rail Airbag Replacement

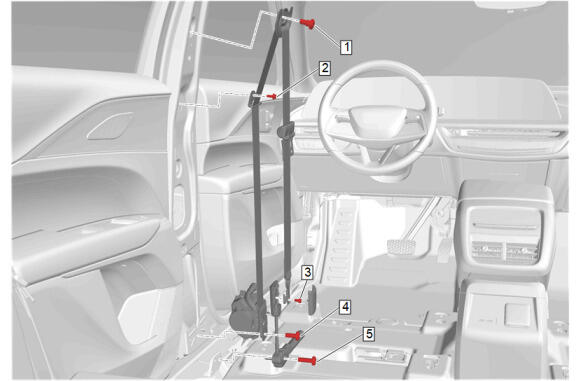

GM5980671Courtesy of GENERAL MOTORS COMPANY
Front Seat Belt Retractor and Anchor Plate Tensioner

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Seat Belt Guide Bolt - - 45 N.m (33 lb ft) Front Seat Belt Retractor Replacement
2 Front Seat Belt Intermediate Guide Bolt - - 9 N.m (80 lb in) Front Seat Belt Retractor Replacement
3 Front Seat Belt Anchor Plate Tensioner Bolt - Yes 5 N.m (44 lb in) Front Seat Belt Retractor Replacement
4 Front Seat Belt Retractor Bolt - - 45 N.m (33 lb ft) Front Seat Belt Retractor Replacement
5 Front Seat Belt Anchor Bolt - - 45 N.m (33 lb ft) Front Seat Belt Anchor Plate Tensioner Replacement

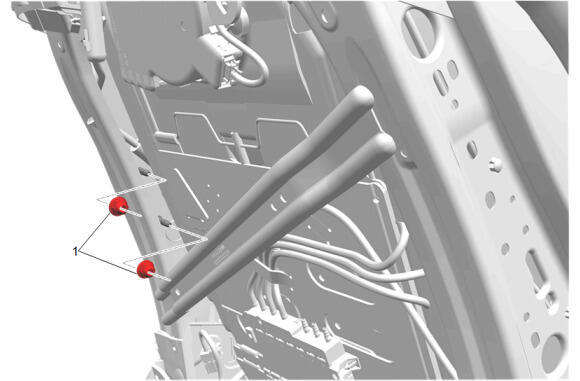

GM5980669Courtesy of GENERAL MOTORS COMPANY
Front Seat Outboard Seat Back Airbag

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Seat Side Airbag Nut [2x] - - 6.9 N.m (61 lb in) Front Seat Outboard Seat Back Airbag Replacement

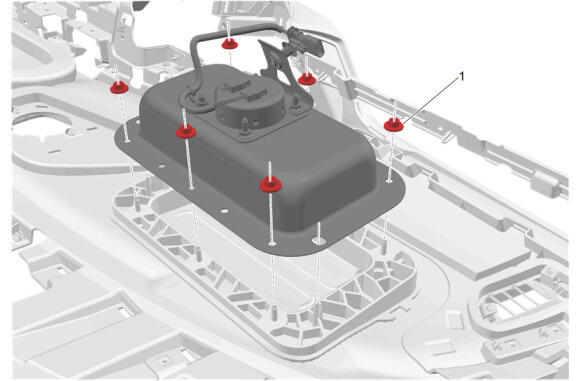

GM5980666Courtesy of GENERAL MOTORS COMPANY
Instrument Panel Airbag

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Instrument Panel Airbag Nut [6x] - - 9 N.m (80 lb in) Instrument Panel Airbag Replacement

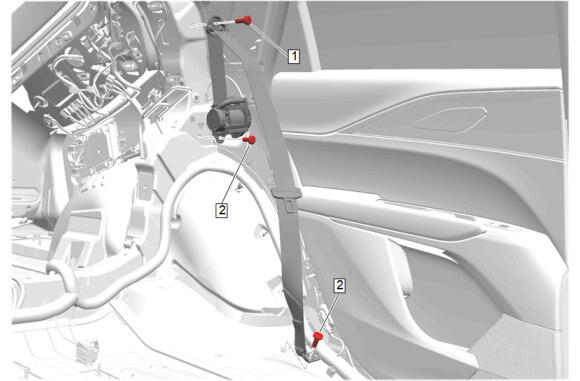

GM5981664Courtesy of GENERAL MOTORS COMPANY
Rear Seat Belt Retractor

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Seat Belt Anchor Plate Bolt - - 45 N.m (33 lb ft) Rear Seat Belt Retractor Replacement
2 Rear Seat Belt Retractor Bolt [2x] - - 45 N.m (33 lb ft) Rear Seat Belt Retractor Replacement

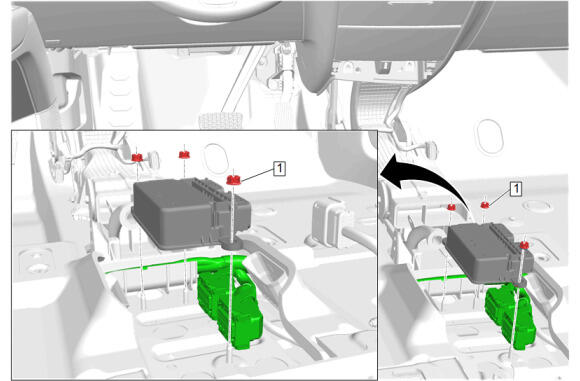

GM5980663Courtesy of GENERAL MOTORS COMPANY
Restraints Control Module

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Airbag Sensing and Diagnostic Module Nut [3x] - - 9 N.m (80 lb in) Restraints Control Module Replacement

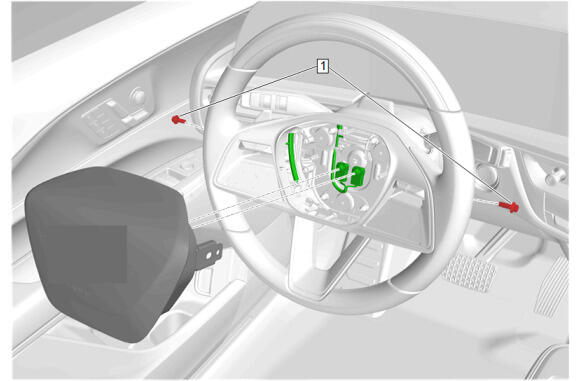

GM5980662Courtesy of GENERAL MOTORS COMPANY
Steering Wheel Airbag

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Steering Wheel Airbag Bolt [2x] - - 9 N.m (80 lb in) Steering Wheel Airbag Replacement
