Air Conditioning Compressor Bracket Replacement (LE2)
WARNING: This page is about a different car, the 2018 Chevrolet Trax and 2018 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

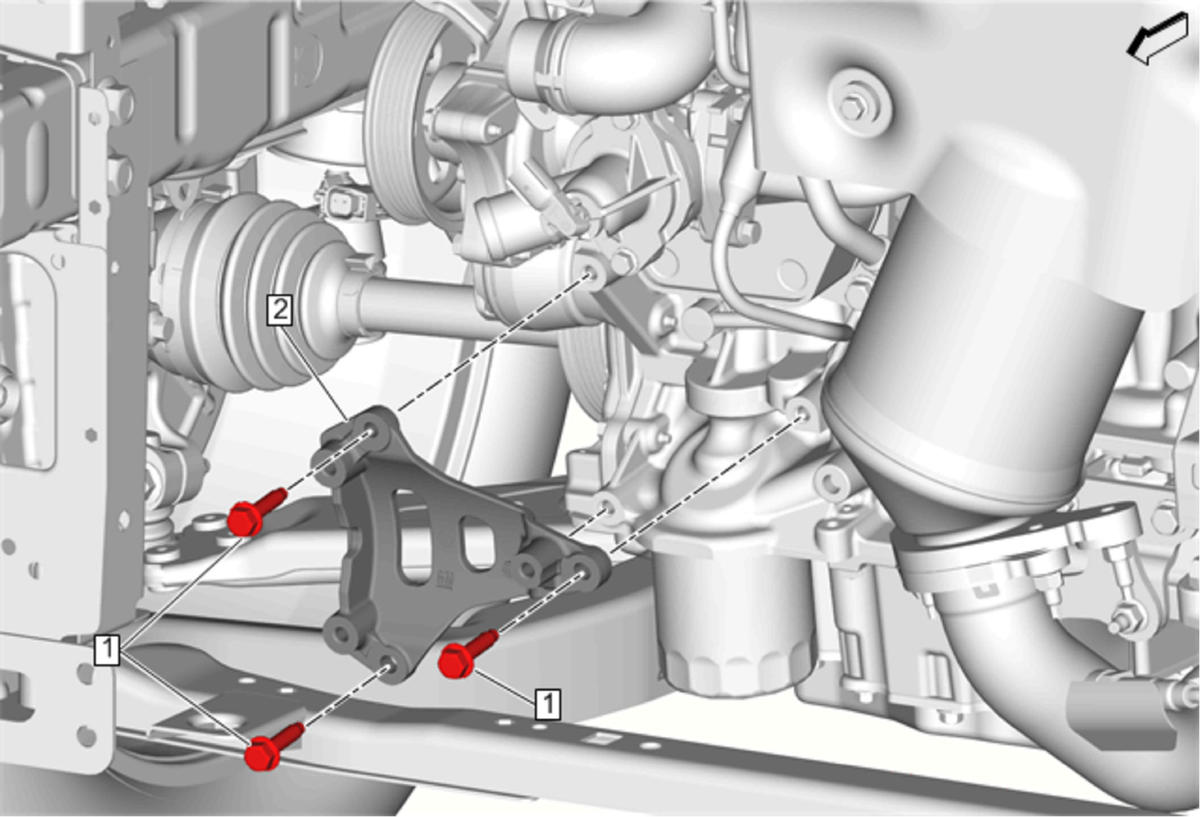

| Callout | Component Name |
|---|---|
| Preliminary Procedure Air Conditioning Compressor Replacement (LE2) Air Conditioning Compressor Replacement (2H0) Air Conditioning Compressor Replacement (LUV) |
|
| 1 | Air Conditioning Compressor Bracket Bolt(3x)
CAUTION:
Refer to Fastener Caution . Tighten 22 N.m (16 lb ft) |
| 2 | Air Conditioning Compressor Bracket |
