Air Conditioning Compressor Replacement (LUV)

WARNING: This page is about a different car, the 2018 Chevrolet Trax and 2018 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

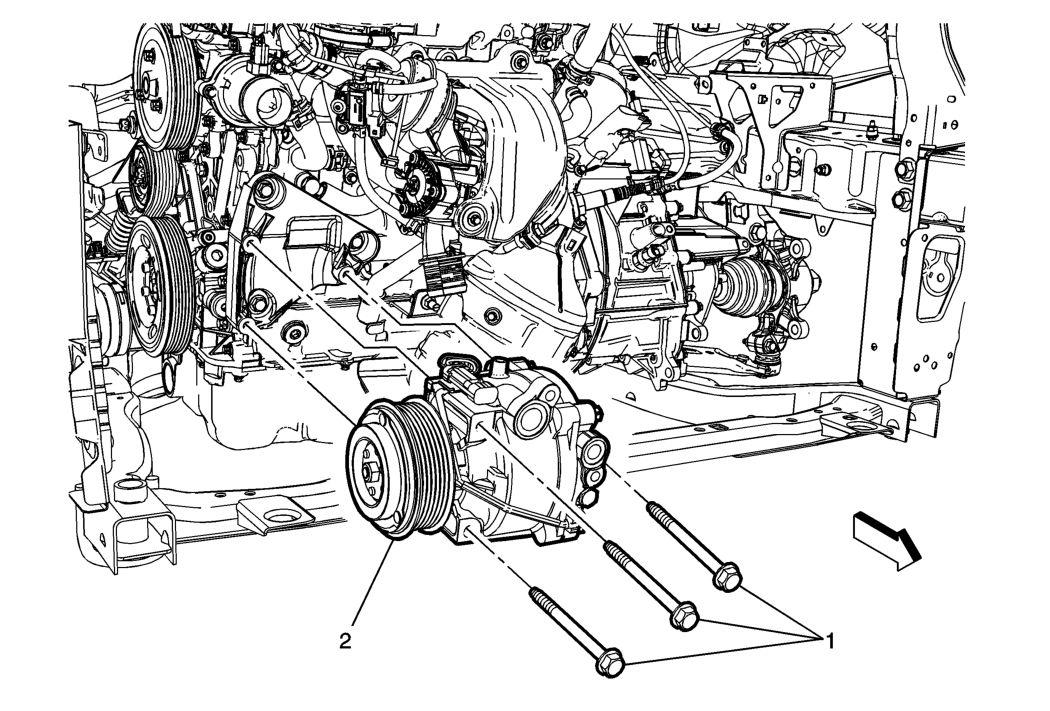

Callout	Component Name
Preliminary Procedures Drive Belt@Air Conditioning Compressor - Remove - Drive Belt Replacement Air Conditioning Compressor Hose@Air Conditioning Compressor - Remove - Air Conditioning Compressor Hose Replacement (2H0) Air Conditioning Compressor Hose Replacement (LE2) Air Conditioning Compressor Hose Replacement (LUV) Air Conditioning Condenser Hose@Air Conditioning Compressor - Remove - Air Conditioning Condenser Hose Replacement (2H0) Air Conditioning Condenser Hose Replacement (LUV) Air Conditioning Condenser Hose Replacement (LE2) Underbody Front Air Deflector Replacement
1	Air Conditioning Compressor Bolt[3x] CAUTION: Refer to Fastener Caution . Tighten 22 N.m (16 lb ft)
2	Air Conditioning Compressor Procedure When replacing the A/C compressor, balance the compressor oil. Air Conditioning Compressor Oil Balancing

Callout

Component Name

Preliminary Procedures

Drive Belt@Air Conditioning Compressor - Remove - Drive Belt Replacement
Air Conditioning Compressor Hose@Air Conditioning Compressor - Remove - Air Conditioning Compressor Hose Replacement (2H0) Air Conditioning Compressor Hose Replacement (LE2) Air Conditioning Compressor Hose Replacement (LUV)
Air Conditioning Condenser Hose@Air Conditioning Compressor - Remove - Air Conditioning Condenser Hose Replacement (2H0) Air Conditioning Condenser Hose Replacement (LUV) Air Conditioning Condenser Hose Replacement (LE2)
Underbody Front Air Deflector Replacement

Air Conditioning Compressor Bolt[3x]

CAUTION:

Refer to Fastener Caution .

Tighten
22 N.m (16 lb ft)

Air Conditioning Compressor
Procedure
When replacing the A/C compressor, balance the compressor oil. Air Conditioning Compressor Oil Balancing
