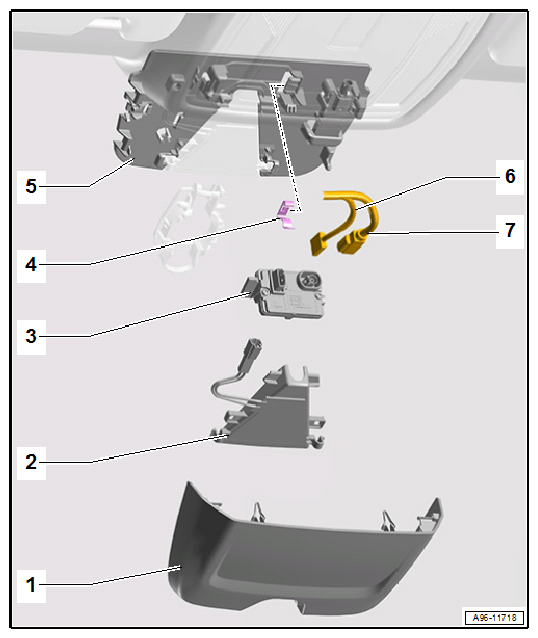

5.1.1 Component Location Overview - Driver Assistance Systems Front Camera
- Cover Plate
- Lens
- With Window Defogger for Front Sensor System - Z113- for the Driver Assistance Systems Front Camera - R242-
- Removing and installing. Refer to 5.2 Driver Assistance Systems Front Camera, Removing and Installing .
- Driver Assistance Systems Front Camera - R242-
- Removing and installing. Refer to 5.2 Driver Assistance Systems Front Camera, Removing and Installing .
- For the conditions when the driver assistance systems front camera must be calibrated, refer to DRIVER ASSISTANCE SYSTEMS FRONT CAMERA SYSTEM CALIBRATION
- Clip
- Replace after removing the driver assistance systems front camera
- Retaining Plate
- Connector
- Antenna Wire
