Accelerator linkage, servicing: Notes

NOTE: The following list refers to Fig 1.

- Accelerator pedal module
- with Throttle Position (TP) sensor -G79- and Sender -2- for accelerator pedal position -G185-
- Throttle Position (TP) Sensors -G79- and -G185-, checking. See THROTTLE POSITION (TP) SENSOR, CHECKING .
- Removing and installing. See ACCELERATOR PEDAL MODULE WITH THROTTLE POSITION (TP) SENSOR -G79- AND SENDER -2- FOR ACCELERATOR PEDAL POSITION -G185-, REMOVING AND INSTALLING .
- 10 N.m
- 6-pin harness connector
- 10 N.m

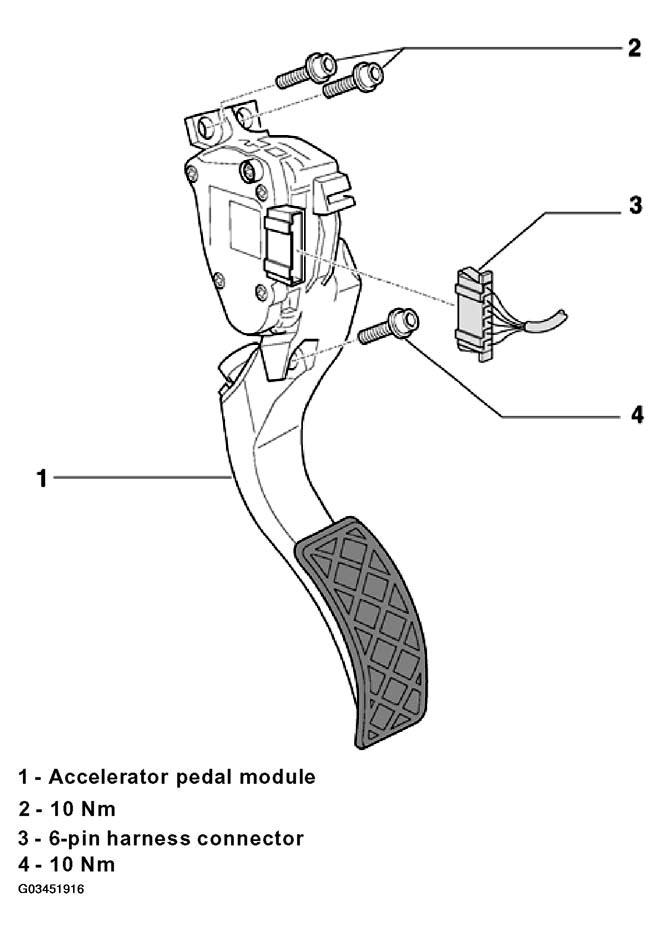

Fig 1: Identifying Accelerator Linkage Components

Courtesy of AUDI OF AMERICA, INC.
