Transmission layout: Notes

WARNING: This page is about a different variant/trim than selected.
NOTE: The following list refers to Fig 1.
  1. Engine
  2. Clutch
  3. Transmission
  4. Input shaft (main shaft)
  5. Front differential
  6. Front drive pinion (output shaft)
  7. Hollow shaft
  8. Torsen differential
  9. Driveshaft
  10. Rear drive pinion
  11. Rear differential
NOTE: Arrows point in forward direction of travel.

I - 1st gear

II - 2nd gear

III - 3rd gear

IV - 4th gear

V - 5th gear

VI - 6th gear

R - Reverse gear

A 1  - Front final drive

A 2  - Rear final drive

T - Speedometer drive, electronic

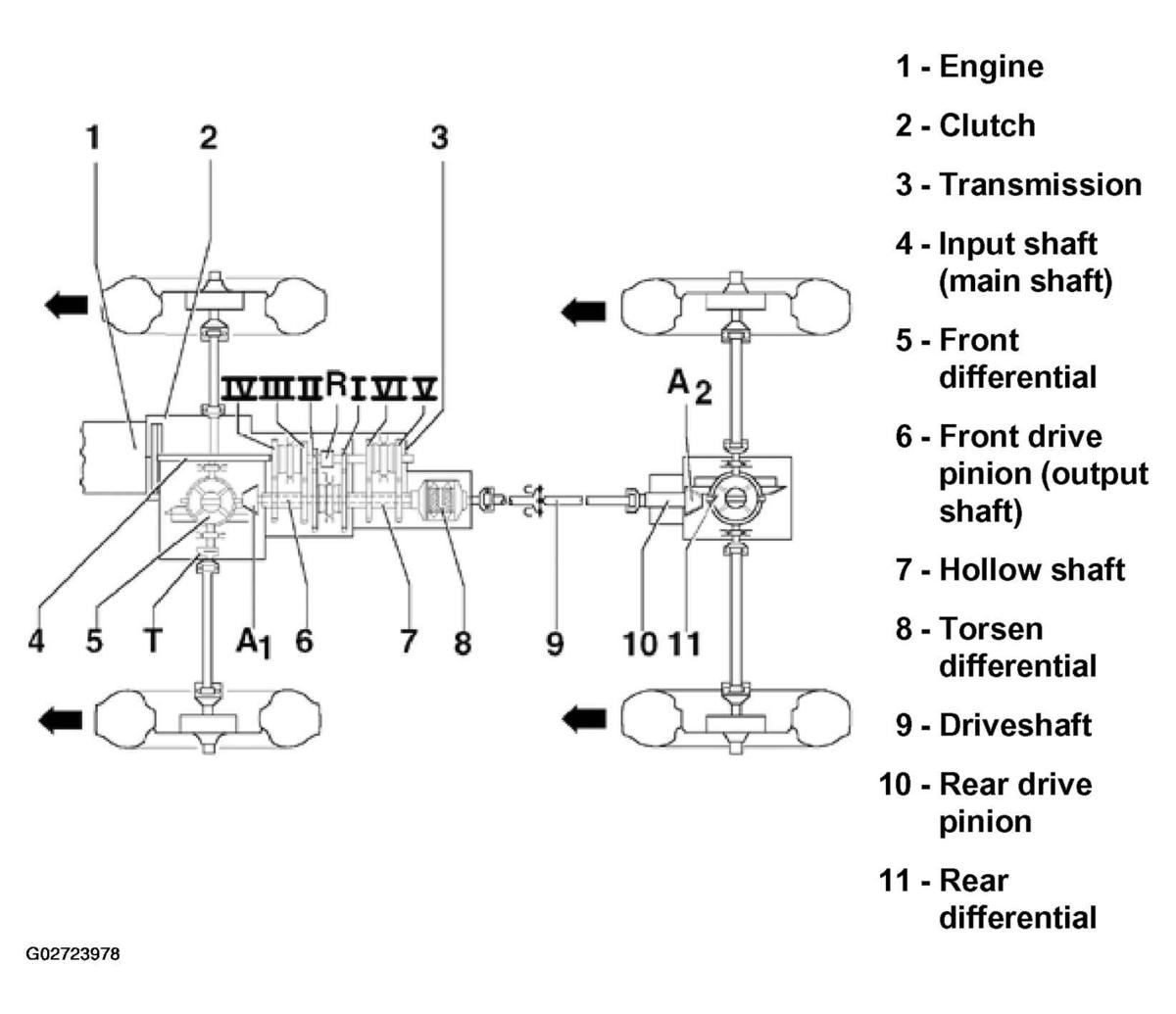

Fig 1: Identifying Transmission Layout And Power Flow
G02723978Courtesy of AUDI OF AMERICA, INC.
NOTE: Arrows point in forward direction of travel.
