Locking elements
WARNING: This page is about a different variant/trim than selected.
- Do not overstretch circlips.
- Always replace circlips which have been damaged or over-tensioned.
- Circlips must be properly seated in the base of the groove.

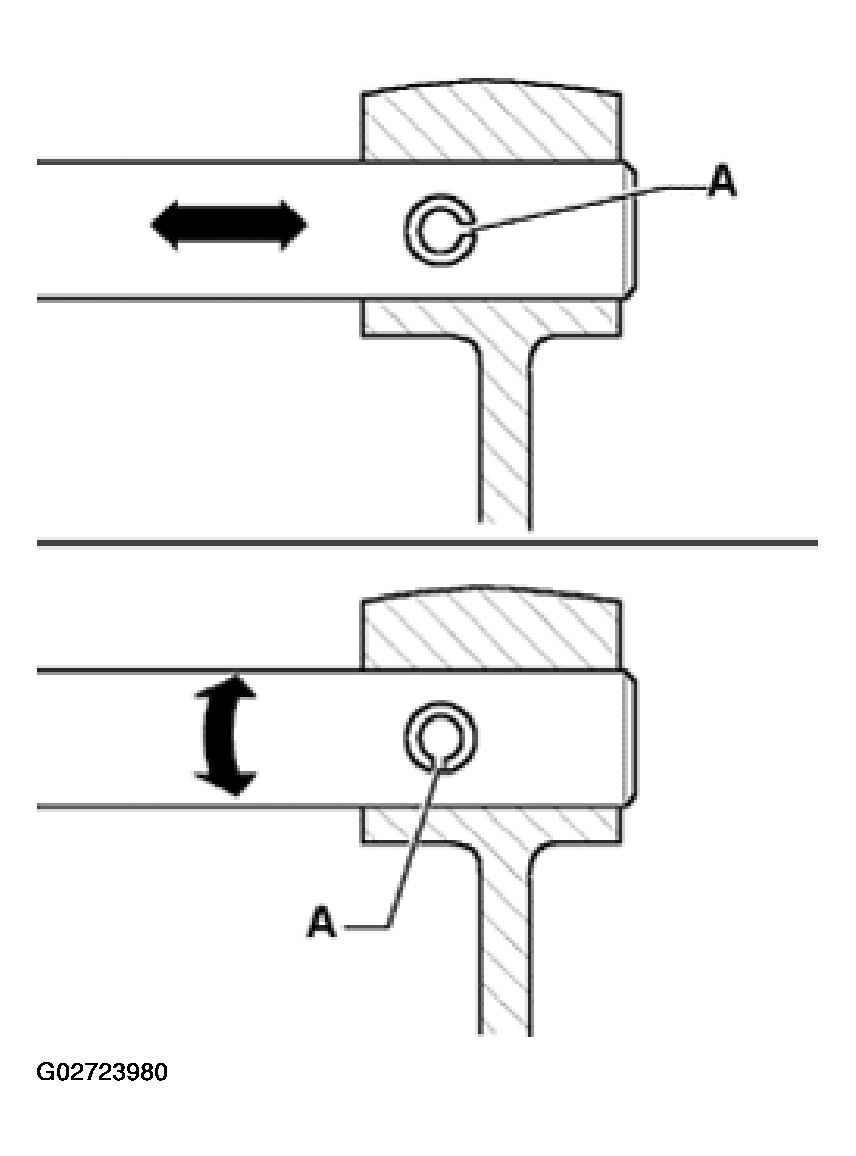

- Replace spring pins. Position: slit -A- should be in line with the line of force (arrow).
