Battery Energy Control Module (BECM) [2021-2022, E400V6]: Removal

Courtesy of VOLVO CARS CORPORATION

WARNING:

Only specially trained technicians may work with the High voltage system.

Courtesy of VOLVO CARS CORPORATION

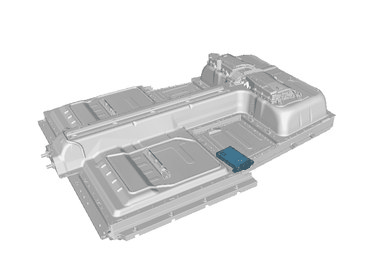

NOTE:

Orientation view

Remove the high voltage battery. Refer to: HIGH VOLTAGE BATTERY

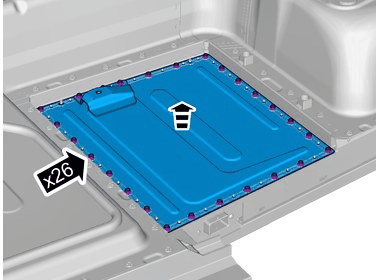

Courtesy of VOLVO CARS CORPORATION

Remove the screws.

Remove the marked part.

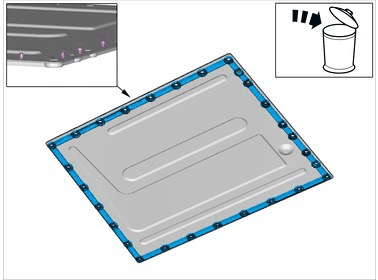

Courtesy of VOLVO CARS CORPORATION

NOTE:

The weatherstrip seal cannot be re-used.

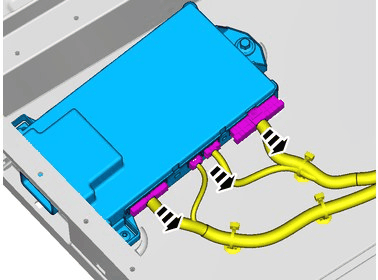

Courtesy of VOLVO CARS CORPORATION

Disconnect the connectors.

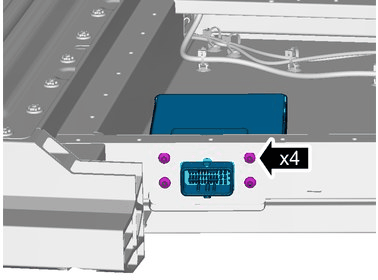

Courtesy of VOLVO CARS CORPORATION

Remove the screws.

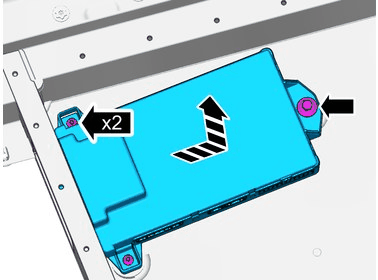

Courtesy of VOLVO CARS CORPORATION

Remove the screws.

Remove the marked part.
