Window Control Switch, Rear [2018-2022]: Removal

Set the vehicle to Inactive mode, described in user mode. Refer to: USAGE MODE

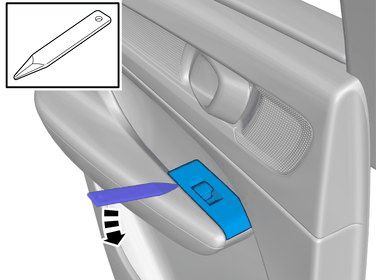

GLL1025539Courtesy of VOLVO CARS CORPORATION

Remove the marked part.

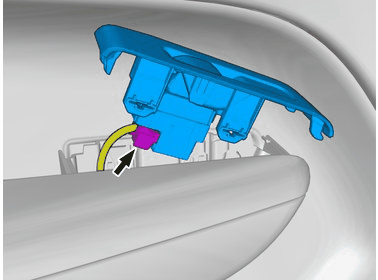

GLL1032258Courtesy of VOLVO CARS CORPORATION

Disconnect the connector.

Remove the marked part.
