Power Operated Tailgate Module (Pot) [2017-2022]: Removal

Set the vehicle to Inactive mode, described in user mode. Refer to: [USAGE MODE]

Remove side panel cargo compartment. Refer to: [SIDE PANEL LOADSPACE]

Courtesy of VOLVO CARS CORPORATION

NOTE:

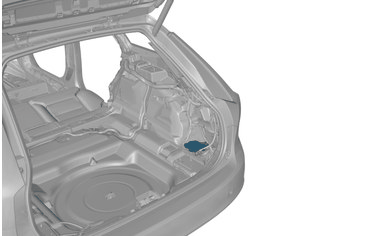

Orientation view

Courtesy of VOLVO CARS CORPORATION

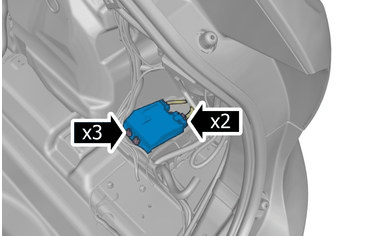

Disconnect the connectors.

Remove the nuts.

Remove the marked part.
