Battery Control Switch Module BCSM [2016-2020, B4204T23; B4204T27]: Removal

NOTE:

Removal steps in this procedure may contain installation details.

Follow the instructions regarding disconnection and connection, refer to: BATTERY DISCONNECTING AND CONNECTING

Courtesy of VOLVO CARS CORPORATION

NOTE:

Orientation view

Courtesy of VOLVO CARS CORPORATION

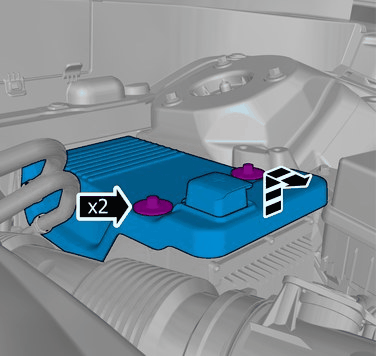

Remove the screws.

Remove the marked part.

Torque: M6, 10Nm

Courtesy of VOLVO CARS CORPORATION

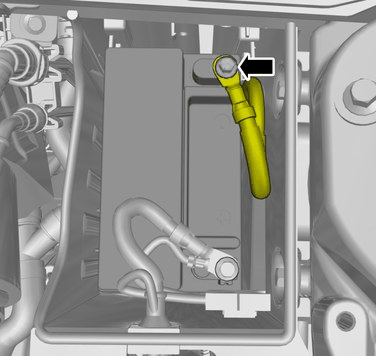

Remove the screw.

Torque: Battery cable terminal, to Extra battery, 6.5Nm

Courtesy of VOLVO CARS CORPORATION

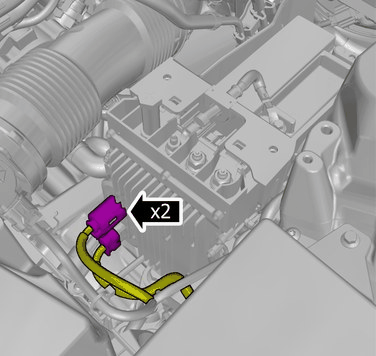

Disconnect the connectors.

Courtesy of VOLVO CARS CORPORATION

NOTE:

Note the position of the electrical connectors.

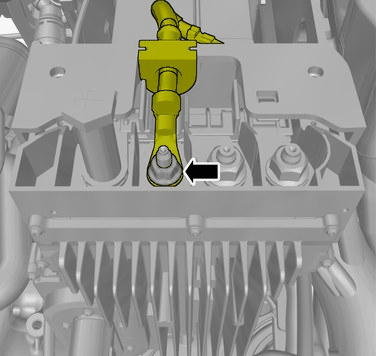

Loosen the nut.

Torque: Nut (M6), to BCSM, 10Nm

Courtesy of VOLVO CARS CORPORATION

NOTE:

Note the position of the electrical connectors.

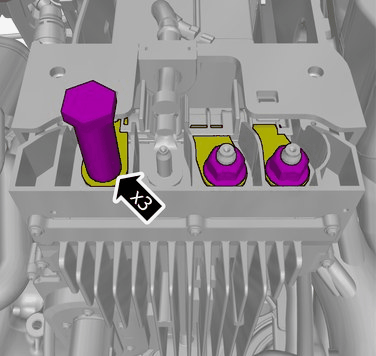

Loosen the nuts.

Torque: Nut (M8), to BCSM, 24Nm

Courtesy of VOLVO CARS CORPORATION

NOTE:

The graphic shows the back of the component before removal.

Courtesy of VOLVO CARS CORPORATION

Release the catch.

Courtesy of VOLVO CARS CORPORATION

Release the catch.
